Art: USW-AggregationEAN: 810010074331

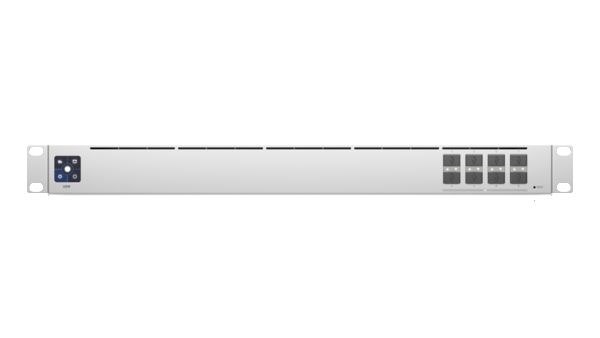

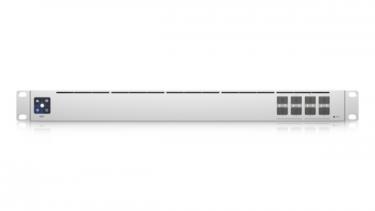

Ubiquiti UniFi Switch Aggregation (USW-AGGREGATION)
Toon alle:
Networking
Gratis verstuurd binnen NL boven €20
Meer dan 20 jaar Telecom ervaring
Altijd scherpe prijzen
Uitsluitend de beste merken
Beschrijving
Ubiquiti UniFi Switch Aggregation
Merk: Ubiquiti
UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3" Touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
- Managed by UniFi Network Controller
Specifications
| Dimensions | 442.4 x 120 x 43.7 mm |
| Weight 2.65 kg 2.74 kg | 2.65 kg 2.74 kg |
| Enclosure Material | SGCC Steel |
Hardware
| Total Non-Blocking Throughput | 80 Gbps |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Max. Power Consumption | 30W |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 36W |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: +/- 16kV, Contact: +/- 12kV |
| Operating Temperature | -5 to 40 C |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
Led
| System (1) Bootup Animation Firmware Upgrade Icon Steady White Steady Blue SFP+ | Bootup in Progress Firmware Upgrading Factory Defaults, Awaiting Adoption Device is Adopted White: 10G, 1G |
Kunnen wij helpen?
Pros and cons
...
...
...
Bullets
- Managed L2
- 10G support
- Switchingcapaciteit: 160 Gbit/s
- 1U Rack-montage
- Vermogenstoevoer inclusief
Reasons to buy
| Technische details | |
|---|---|
| Operating temperature (T-T) | -5 - 40°C |
| Operating relative humidity (H-H) | 10 - 90procent |
| Width | 442.4mm |
| Depth | 120mm |
| Height | 43.7mm |
| Weight | 2650g |
| Product colour | SilverTekst |
| Housing material | Galvanized steelTekst |
| Certification | CE, FCC, ICTekst |
| Netwerk | |
|---|---|
| 10G support | |
| Switching capacity | 160Gbit/s |
| Throughput | 80Gbit/s |
| Forwarding rate | 119.04Mpps |
| Power over Ethernet (PoE) | |
| Energie | |
|---|---|
| Power consumption (max) | 30W |
| AC input voltage | 100 - 240V |
| AC input frequency | 50 - 60Hz |
| Inhoud van de verpakking | |
|---|---|
| Power supply included | |
| Rack mount kit | |
| Cables included | ACTekst |
| Other features | |
|---|---|
| Rack mounting | |
| Switch type | ManagedTekst |
| Harmonized System (HS) code | 85176990Tekst |
| Poorten & interfaces | |
|---|---|
| SFP+ module slots quantity | 8Tekst |
| Basic switching RJ-45 Ethernet ports type | |
| Kenmerken | |
|---|---|
| Release date (DD/MM/YYYY) | 10-12-2020 |
| Form factor | 1UTekst |
| Beheerfuncties | |
|---|---|
| Switch layer | L2Tekst |
| Design | |
|---|---|
| LED indicators | SystemTekst |
| Prestatie | |
|---|---|
| Fanless | |
Show all specificationsShow less
