Name: Ubiquiti Ubiquiti UniFi Redundant Power System (USP-RPS) (USP-RPS)
Brand: Ubiquiti
SKU: USP-RPS
Price: 357.00 EUR
Availability: InStock

Beschrijving

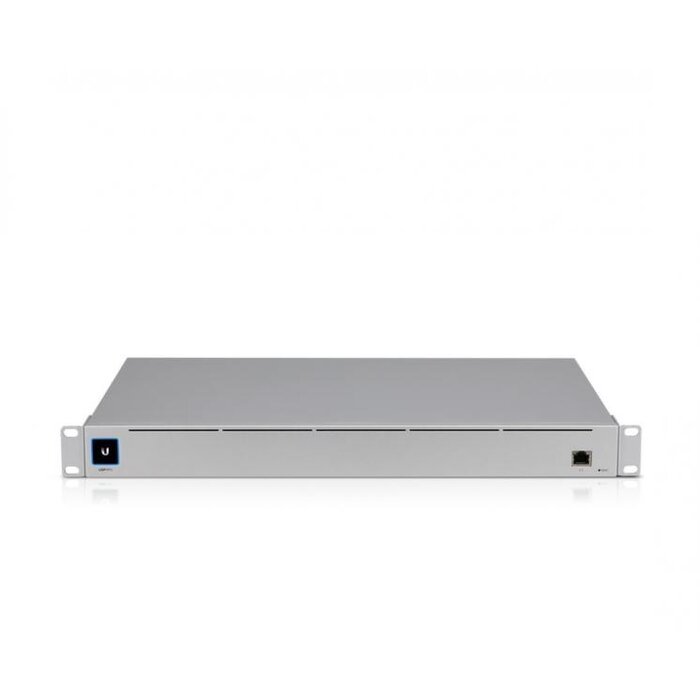

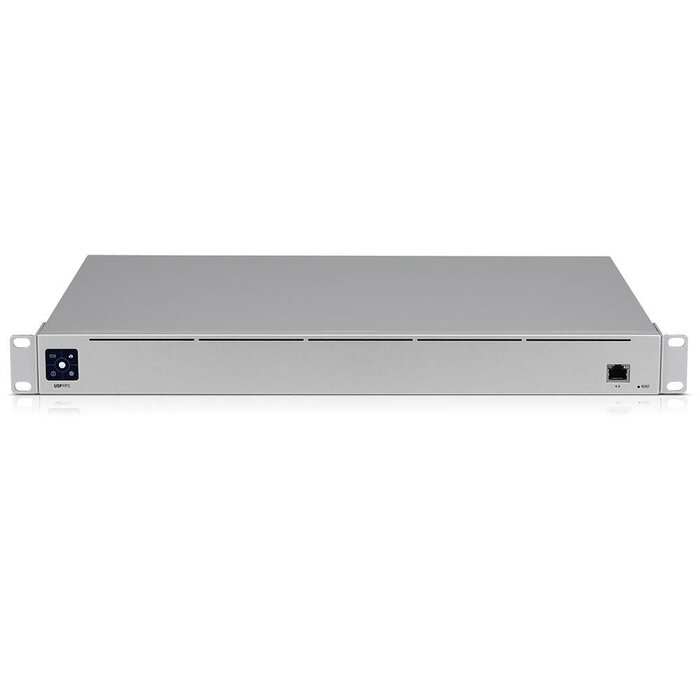

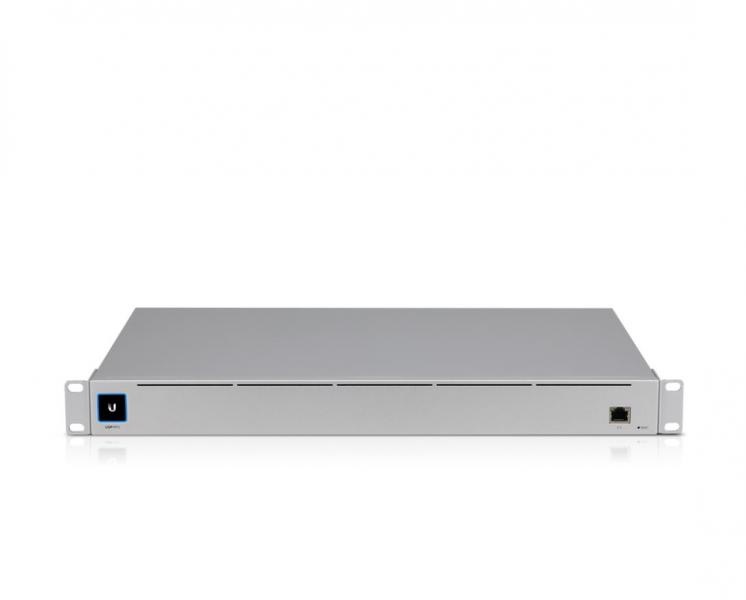

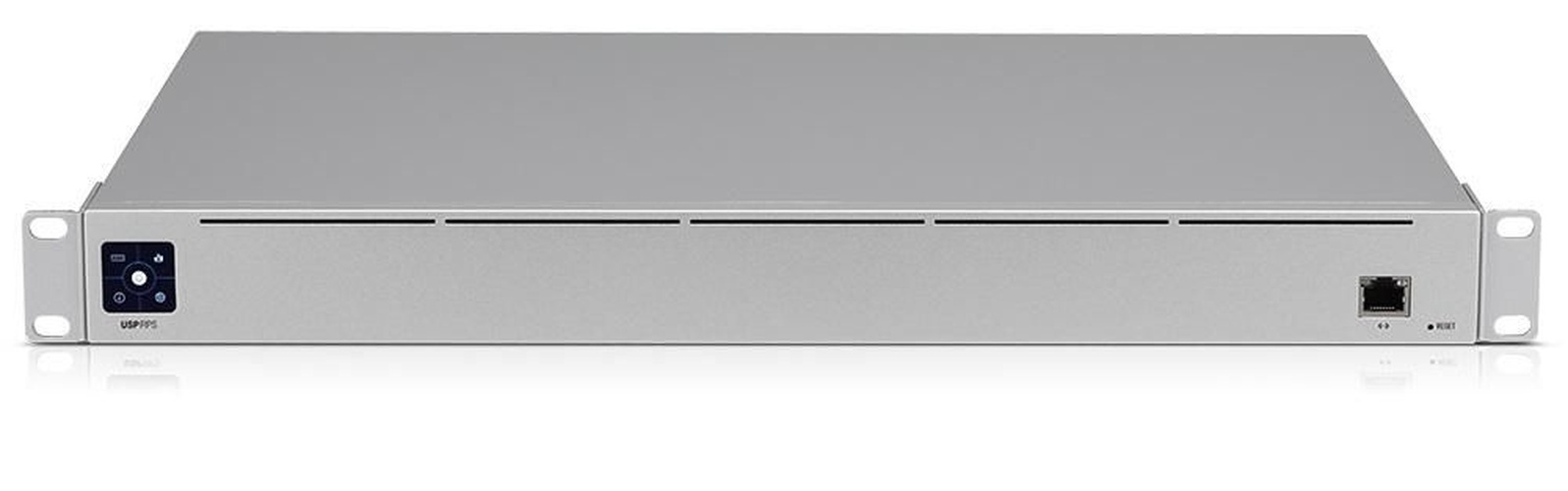

Ubiquiti UniFi Redundant Power System (USP-RPS)

Merk: Ubiquiti

The UniFi SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices.

In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.

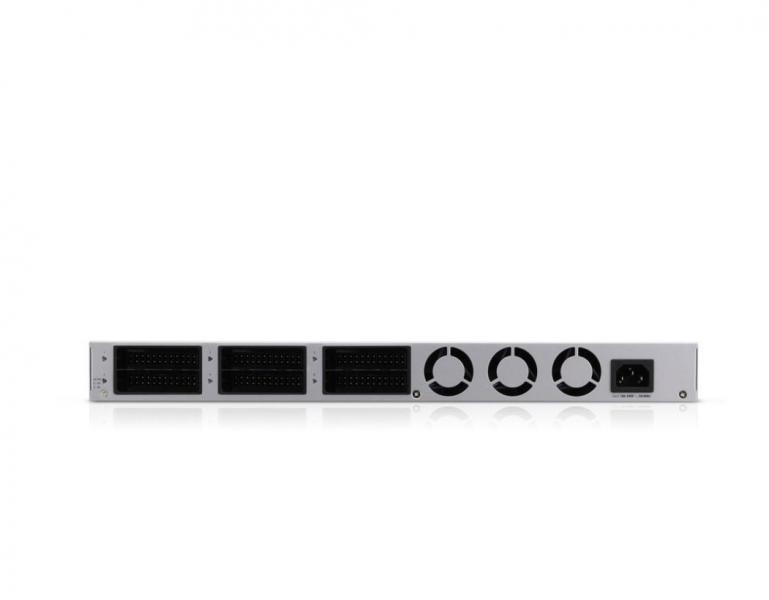

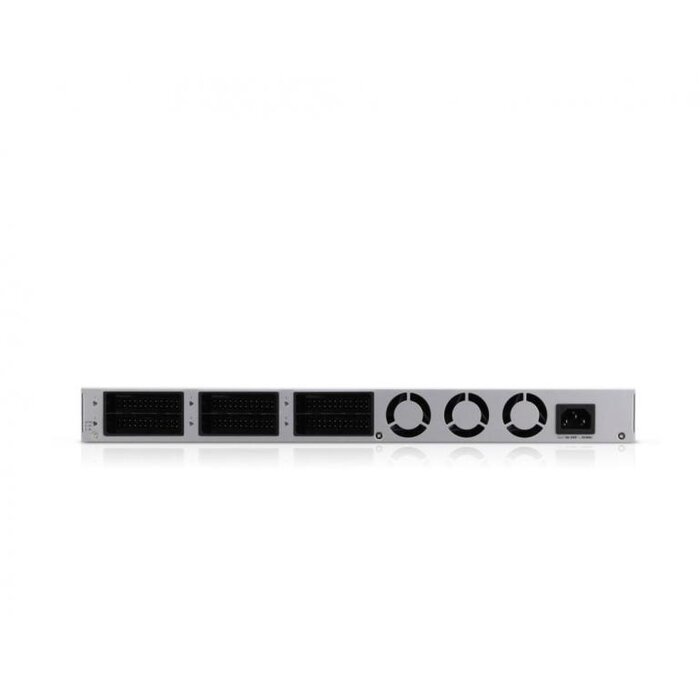

(6) USP DC output ports
(1) Ethernet port
1U Rackmountable (kit included)
1.3" Touchscreen display with status information
Managed by UniFi Network Controller version: 5.12.11 or later

Specifications

Dimensions	442.40 x 325.60 x 43.70 mm
Weight With Mount Brackets	5.500 kg 5.590 kg
Interfaces Networking Management Power Output	(1) 10/100/1000 Mbps RJ45 Port Ethernet In-Band (6) RPS DC Ports
Max. Power Consumption	995W
Power Method	(1) Universal AC Input, 100 to 240VAC
Power Supply	Internal 350W AC/DC Internal 645W AC/DC
Supported Voltage Range	100 - 240VAC
Display	1.3" Color Touch Panel
LED System RJ45 USP RPS	Status Link/Activity Activity
ESD/EMP Protection	Air: +/- 16 kV, Contact: +/- 12 kV
Operating Temperature	-5 to 45 C
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
Total Output Power 52VDC 11.5VDC	11.54A (600W) 30.44A (350W)
Max. Output Power per RPS Port 52VDC 11.5VDC	11.54A (600W) 30.44A (350W)

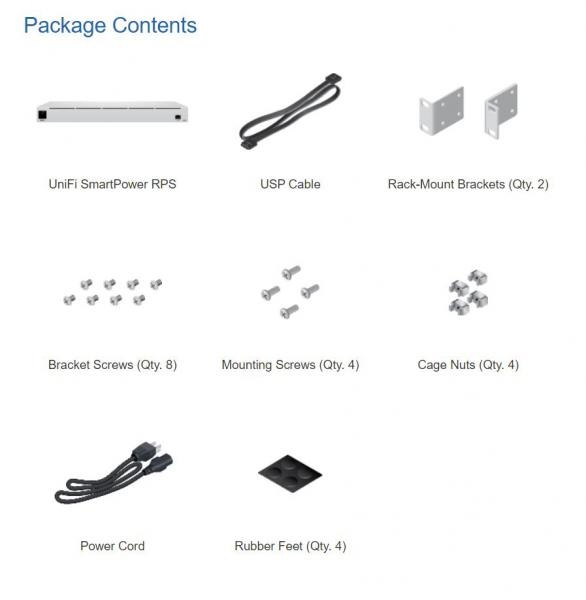

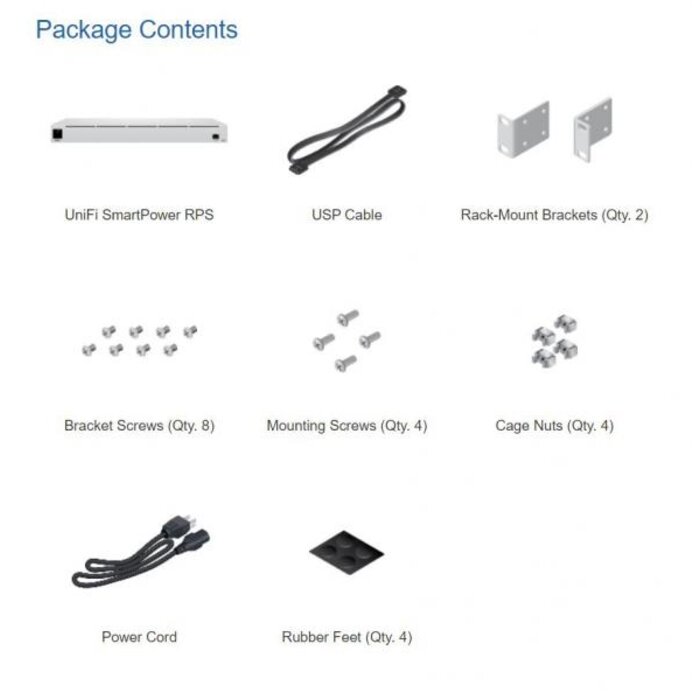

Package Contents

UniFi SmartPower RPS, USP Cable, Rack-Mount Bracket (2), Bracket Screws (8), Mounting Screws (4), Cage Nuts (4), Power Cord, Rubber Feet (4).
