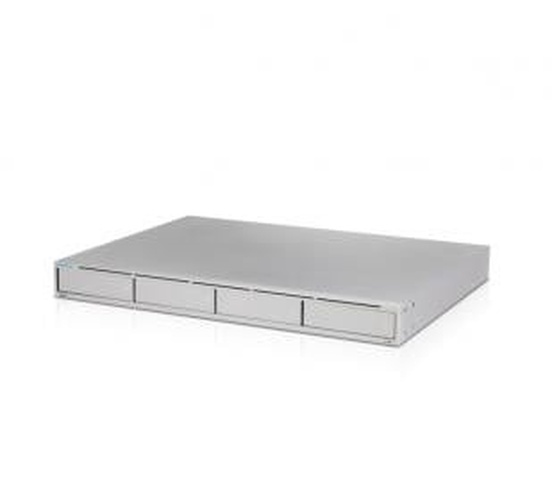

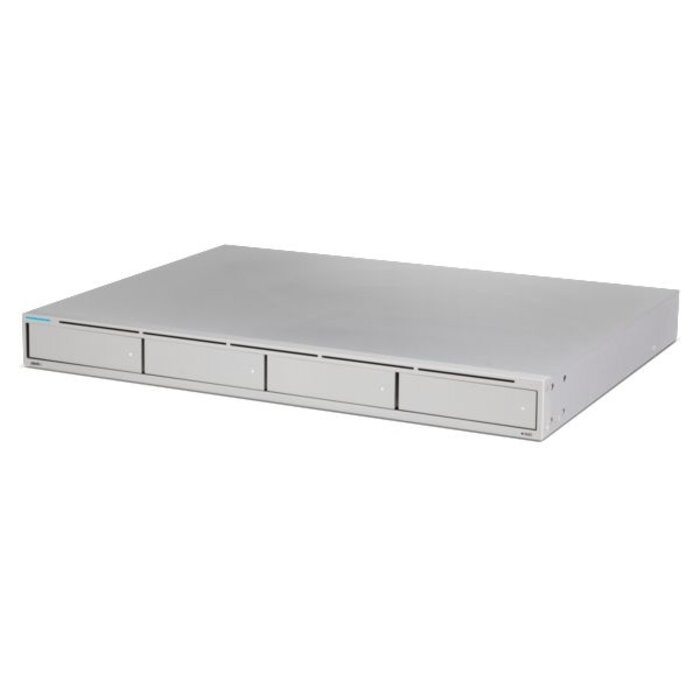

Ubiquiti UniFi Protect Network Video Recorder (UNVR) (UNVR)

Ubiquiti UniFi Protect Network Video Recorder (UNVR) (UNVR)

Merk: Ubiquiti

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

The UniFi NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software.

From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Features:

• (4) 2.5"/3.5" Drive bays
• (1) 10G SFP+ port
• (1) Gigabit RJ45 port
• 1U rackmountable (kit included)
• Plug and Play UniFi Protect system with NVR
• Automated secure RAID 1 or RAID 5 configuration
• Supports USP-RPS for PSU failover

Specifications UNVR

Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight:
- Without Rackmount Brackets: 5.11 kg (11.27 lb)
- With Rackmount Brackets: 5.20 kg (11.46 lb)
Enclosure Characteristics: SGCC Steel
Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
System Memory: 4 GB DDR4
On-Board Flash Storage: SPI NOR 32 MB, USB Flash 8 GB
Max. Power Consumption: 100W
Max. Power Budget for Drives: 75W
Power Method:
- (1) Universal AC Input
- (1) RPS DC Input
Power Supply: 100-240VAC, 50/60 Hz, 2A
Networking Interfaces:
- (1) 10/100/1000 Mbps RJ45 Ethernet
- (1) 1/10 Gbps SFP+ Ethernet
Management Interface: Ethernet In-Band Management
ESD/EMP Protection: Air: +/- 12kV, Contact: +/- 8kV
Operating Temperature: -5 to 40 C (23 to 104 F)
Operating Humidity: 5 - 95% Noncondensing
LEDs:
- System: (1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
- Ethernet: Steady Blue: Device is Adopted
- SFP+ White: Green: 1000 Mbps, Amber: 10/100 Mbps
- SFP+: White: 10 Gbps, Green: 1 Gbps
- HDD: Amber: Disk Error, White: Disk Detected
