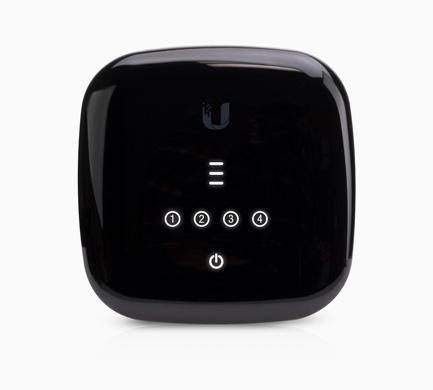

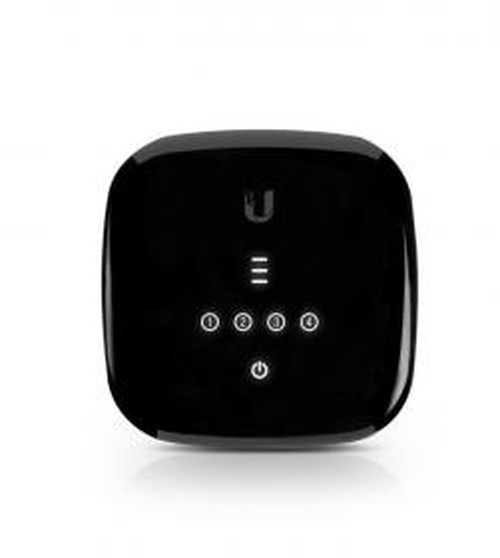

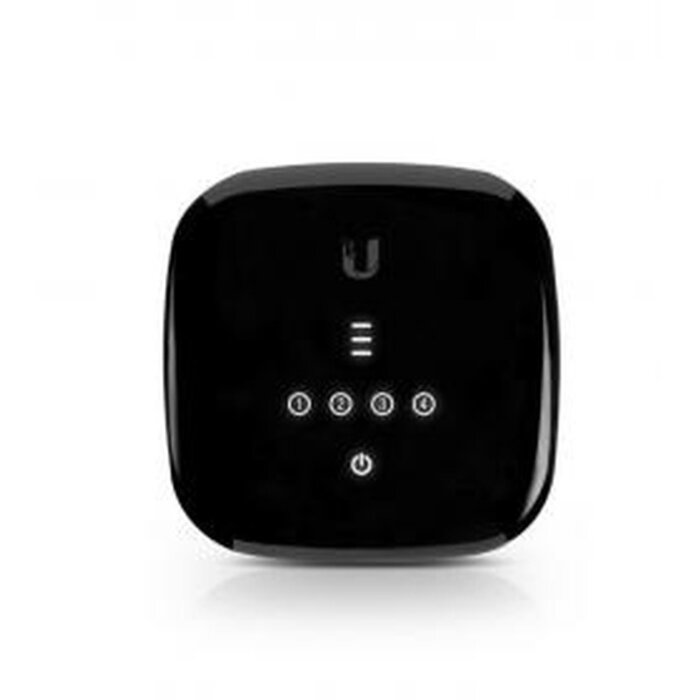

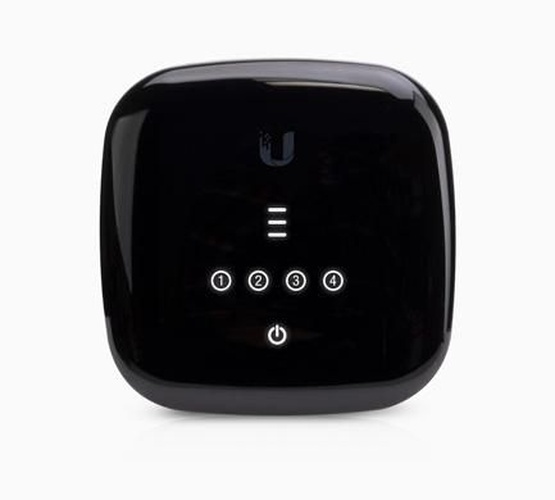

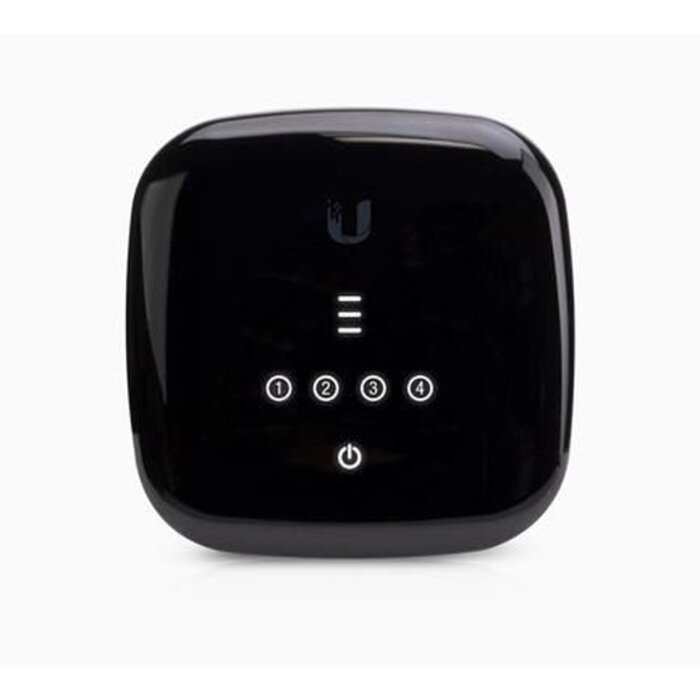

Ubiquiti UFiber WiFi (UF-WiFi)

Merk: Ubiquiti

UFiber WIFI is a robust, high-performance GPON CPE that offers routing, four LAN ports, and Wi-Fi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter.

• High-Performance GPON CPE
• GPON WAN Port SC/APC Fiber Connector
• 4-Port RJ45 10/100/1000 VLAN-aware Switch
• 802.11n WiFi
• LED diodes for easy diagnostics
• Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream

Specifications UF-WiFi

Dimensions: 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25")
Weight: 190 g (6.70 oz)
Networking Interfaces:

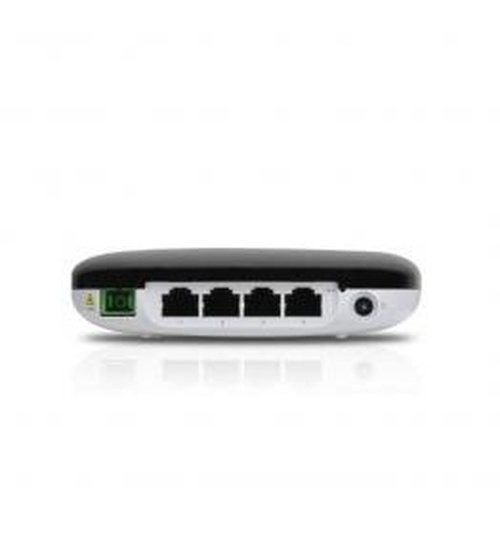

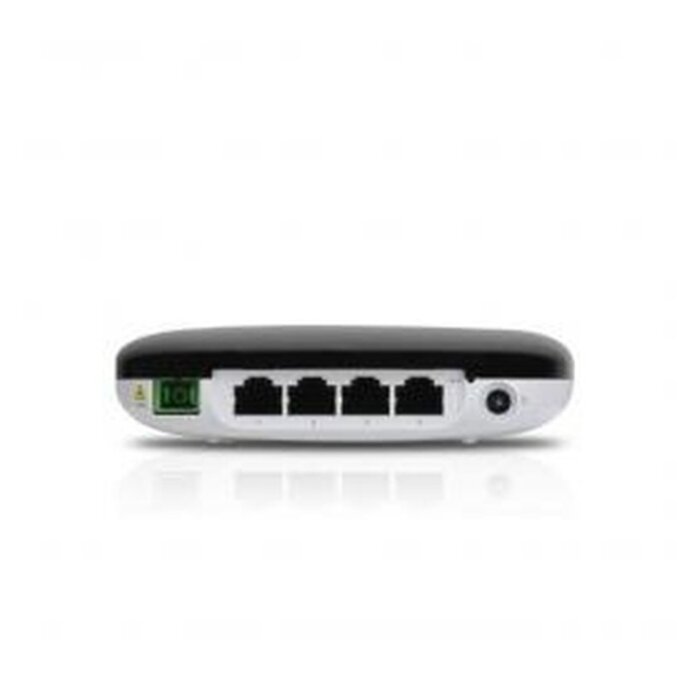

- (1) SC/APC, GPON WAN
- (4) Gigabit RJ45, Ethernet LAN
- (1) Wi-Fi, 802.11n
Networking Interface Speeds:
GPON WAN, ITU G.984: 2.488 Gbps Downstream, 1.244 Gbps Upstream
GbE LAN: 10/100/1000 Mbps:
Wi-Fi: 300 Mbps:
Management Interface: In-Band Ethernet/PON
Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm, RX: -28 to -8 dBm
Power Method: DC Jack, 24VDC, 24V Passive PoE (Pins 4, 5+; 7, 8-)
Power Supply: 100-240VAC / 50-60 Hz Universal AC/DC, Power Adapter: 24V / 0.5A
Max. Power Consumption: 7W
Supported Voltage Range: 20 to 28V
Processor Specs: MIPS, 900 MHz
Memory Information: 256 MB DDR
Buttons: (1) Reset
Operating Temperature: -10 to 45 C (14 to 113 F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

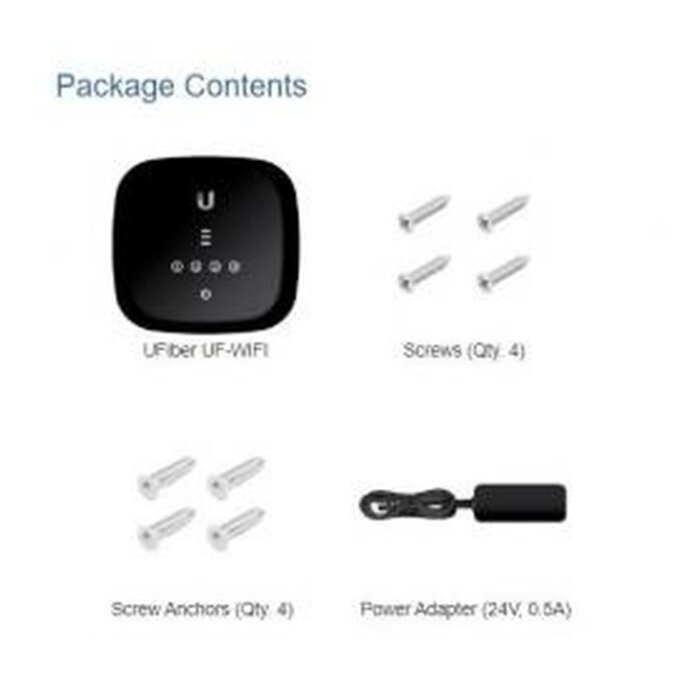

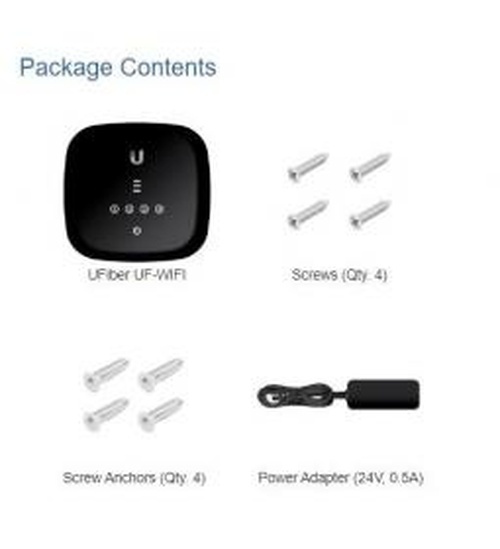

Package Contents

UFiber UF-WIFI, Screws (4), Screw Anchors (4), Power Adapter (24V, 0,5A).
