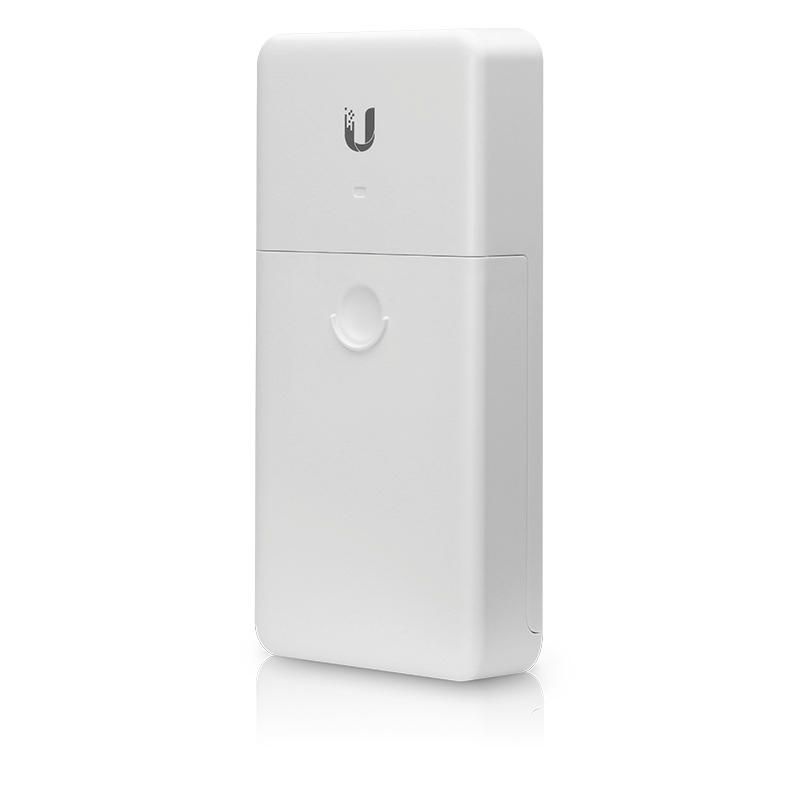

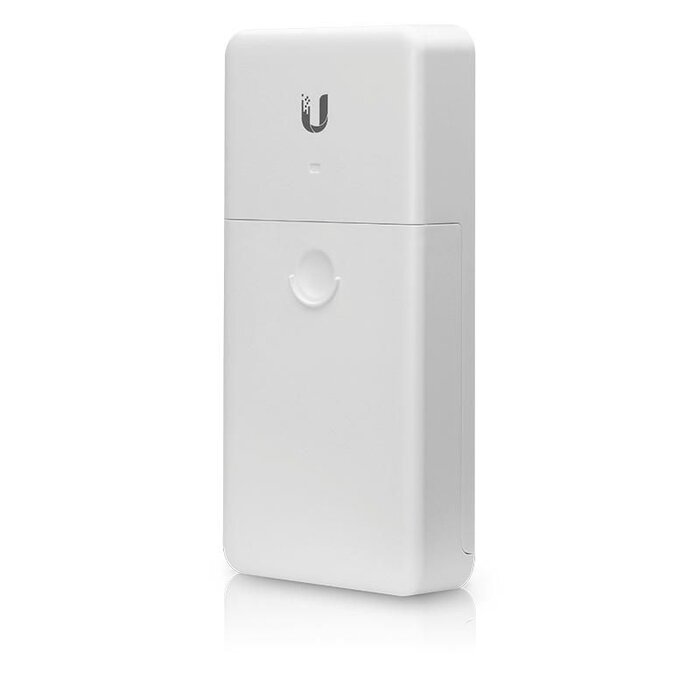

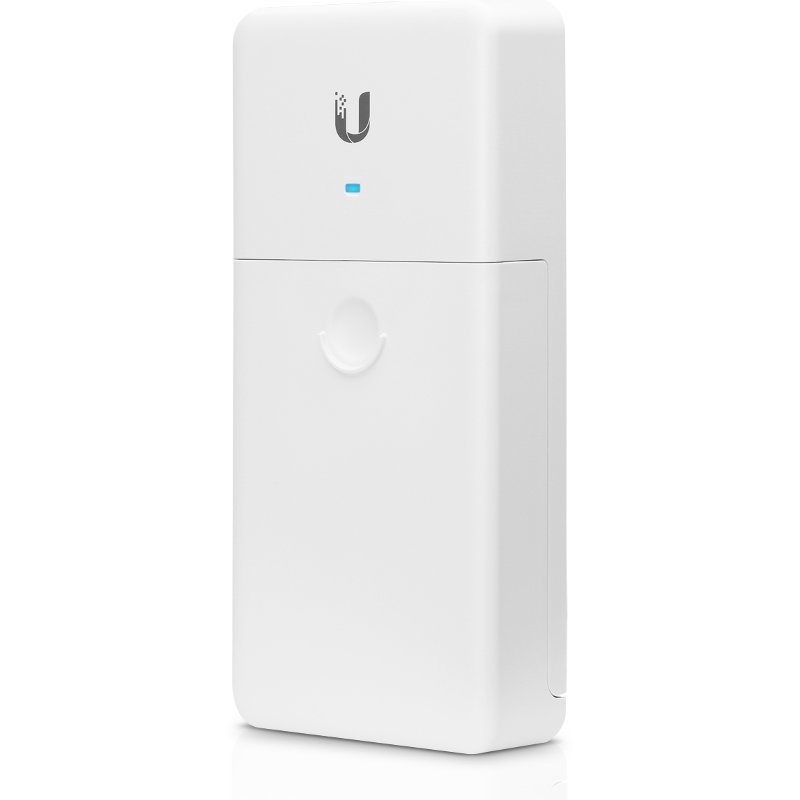

Ubiquiti NanoSwitch outdoor 4-port (N-SW)

Introducing the Ubiquiti Networks NanoSwitch, an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the NanoSwitch supports up to 4 Gbps.

• (1) Gigabit 24V Passive PoE In Port
• (3) Gigabit 24V Passive PoE Out Ports

Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.

Specifications

Dimensions: 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")
Enclosure Characteristics: White Polycarbonate
Total Non-Blocking Line Rate: 4 Gbps
Typical Power Consumption: 1.5W
Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (24W)
Power Method: Passive 24V, 2-Pair PoE In
Power Supply: POE-24-24W PoE Adapter (Not Included)
Passive PoE Voltage Range: 21.6 - 26.4V
LEDs: Speed/Link/Activity (All Ports)
Networking Interfaces: (4) 10/100/1000 Mbps RJ45 Ports|
ESD/EMP Protection: Air: +/- 24 kV, Contact: +/- 24 kV
Operating Temperature: -30 to 70 C (-22 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
Certifications: CE, FCC, IC

Package Contents

NanoSwitch, Self-Tapping Screw, Metal Straps (2), Quick Start Guide
