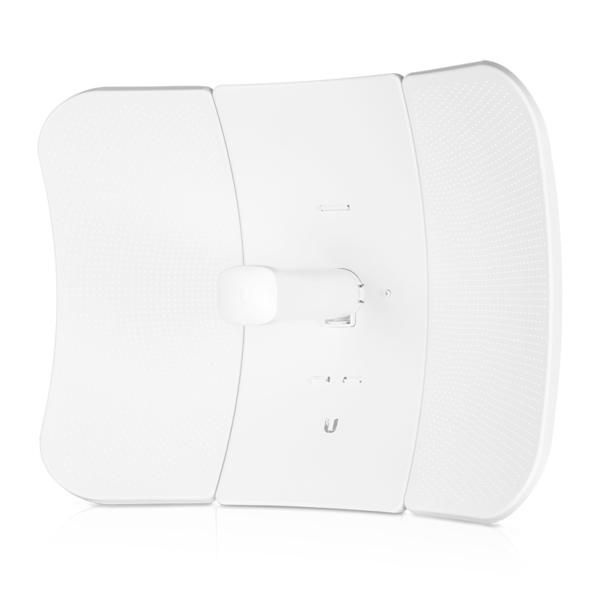

Ubiquiti Litebeam 5AC Long Range (LBE-5AC-LR)

Ubiquiti Litebeam 5AC Long Range

The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI. Designed for long-range applications, the LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

• Improved Radio Design
• Improved Mounting
• Improved Surge Protection
• Management WiFi Radio/UNMS mobile app
• AirOS 8

  *UNMS mobile app for Android and IOS

Specifications LBE-5AC-LR

Dimensions: 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Weight: Without Mount: 1.360 kg (2.998 lb), With Mount 1.735 g (3.825 lb)
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption: 7W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 24V +/- 10%
Gain: 26 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor Specs: MIPS 74Kc
Memory: 64 MB DDR2
LEDs: Power, Ethernet
Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics: Reflector (Aluminium) / Plastic: PC
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: 24 kV Contact / Air
Operating Temperature: -40 to 70 C (-40 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Package Contents

Antenna Feed, Center Reflector Panel, Side Reflector Panels (2), Mounting Bracket, Feed Receiver, Pivot Panels (2), M4 SEM Screws (8), M8 SEM Screws (4), Metal Straps (3), Gigabit PoE (24V, 0.3A) with Mounting Bracket, Power cord
