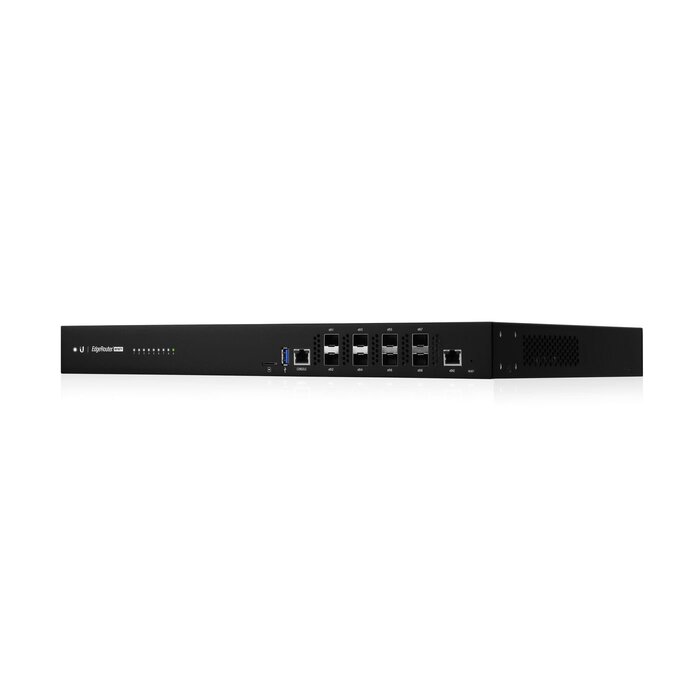

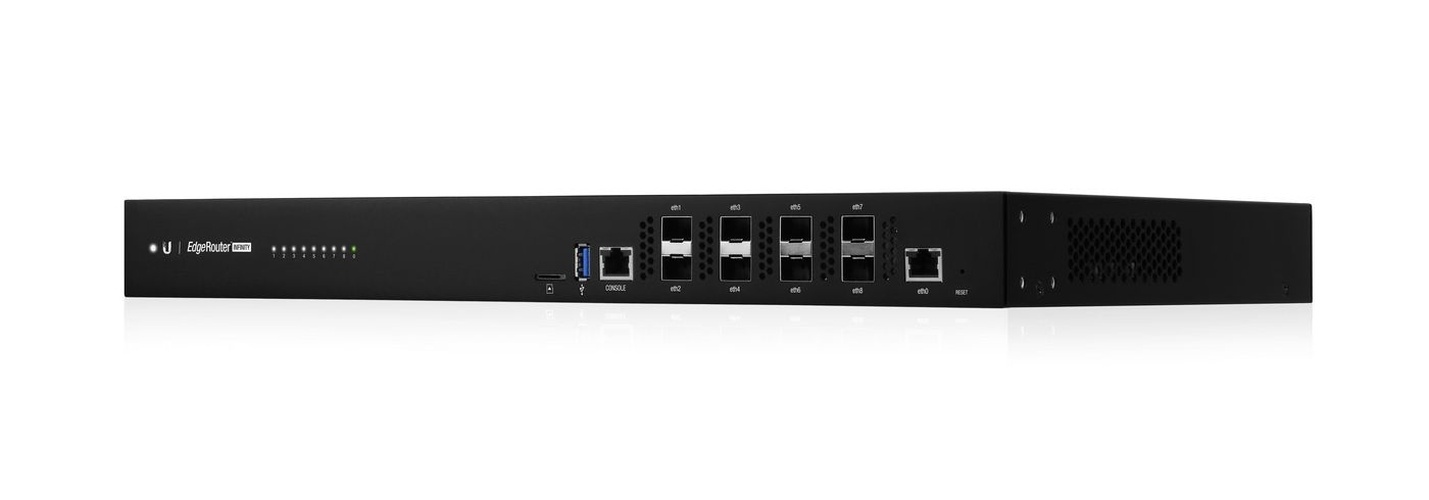

Ubiquiti EdgeRouter X Infinity (ER-8-XG)

Ubiquiti EdgeRouter X Infinity

The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rackmountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS).

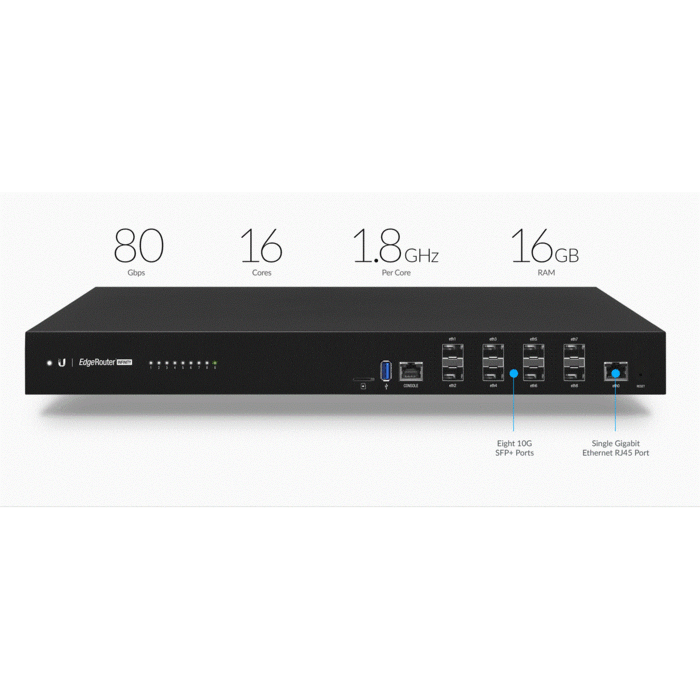

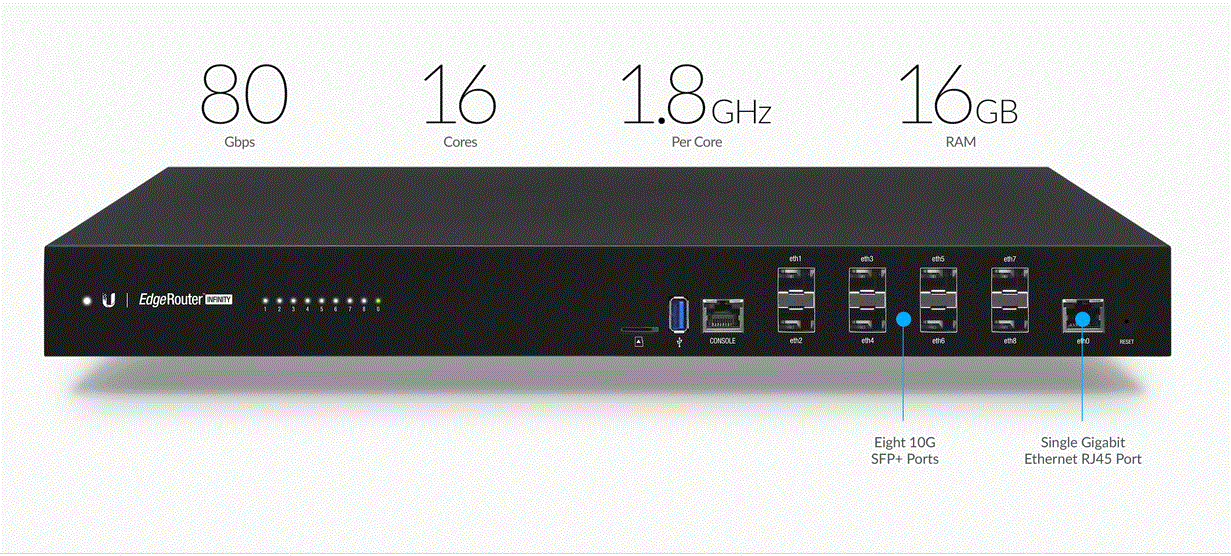

• (8) 10G SFP+ Ports and (1) Gigabit Ethernet RJ45 Port
• Hot-Swappable Modular Power Supplies
• 16-Core, 1.8 GHz Processor
• Rackmountable

Specifications EdgeRouter Infinity

Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight:
- Without Mount: 4.950 kg (10.91 lb
- With Mount: 5.045 kg (11.12 lb)
Enclosure Characteristics: SGCC Steel
Max. Power Consumption: 100W
Power Method: Hot-Swappable AC/DC or DC/DC* Power Supply Module
Supported Voltage Range:
- AC/DC Power Supply Module: 100 to 240VAC, 24VDC Output
- DC/DC Power Supply Module: 38 to 54VDC, 24VDC Output
LEDs:
- System: Status
- SFP+ Data Ports:Link/Activity
- RJ45 Data Port: Link/Activity
Ports:
- Serial Console Port: (1) RJ45 Serial Port
- Data Ports: (8) SFP+ Ports, (1) RJ45 Gigabit Ethernet Port
Layer 3 Forwarding Performance:
- Packet Size: 64 Bytes - 18,000,000 pps
- Packet Size: 1514 Bytes - 80 Gbps (Line Rate)
Processor: MIPS64 16 Core 1.8 GHz with Hardware Acceleration for Packet Processing
System Memory: 16 GB DDR4 RAM
On-Board Flash Storage:8 MB NOR Flash, 4 GB eMMC NAND Flash
Certifications: CE, FCC, IC
Rackmount: Yes, 1U
Operating Temperature: -5 to 40 C (23 to 104 F)
Operating Humidity: 5 - 95% Noncondensing

Package contents

EdgeRouter Infinity, Mounting Brackets (2), Bracket Screws (8), Mounting Screws (4), Cage Nuts (4), Power Cords (2), Rubber Feet (4).
