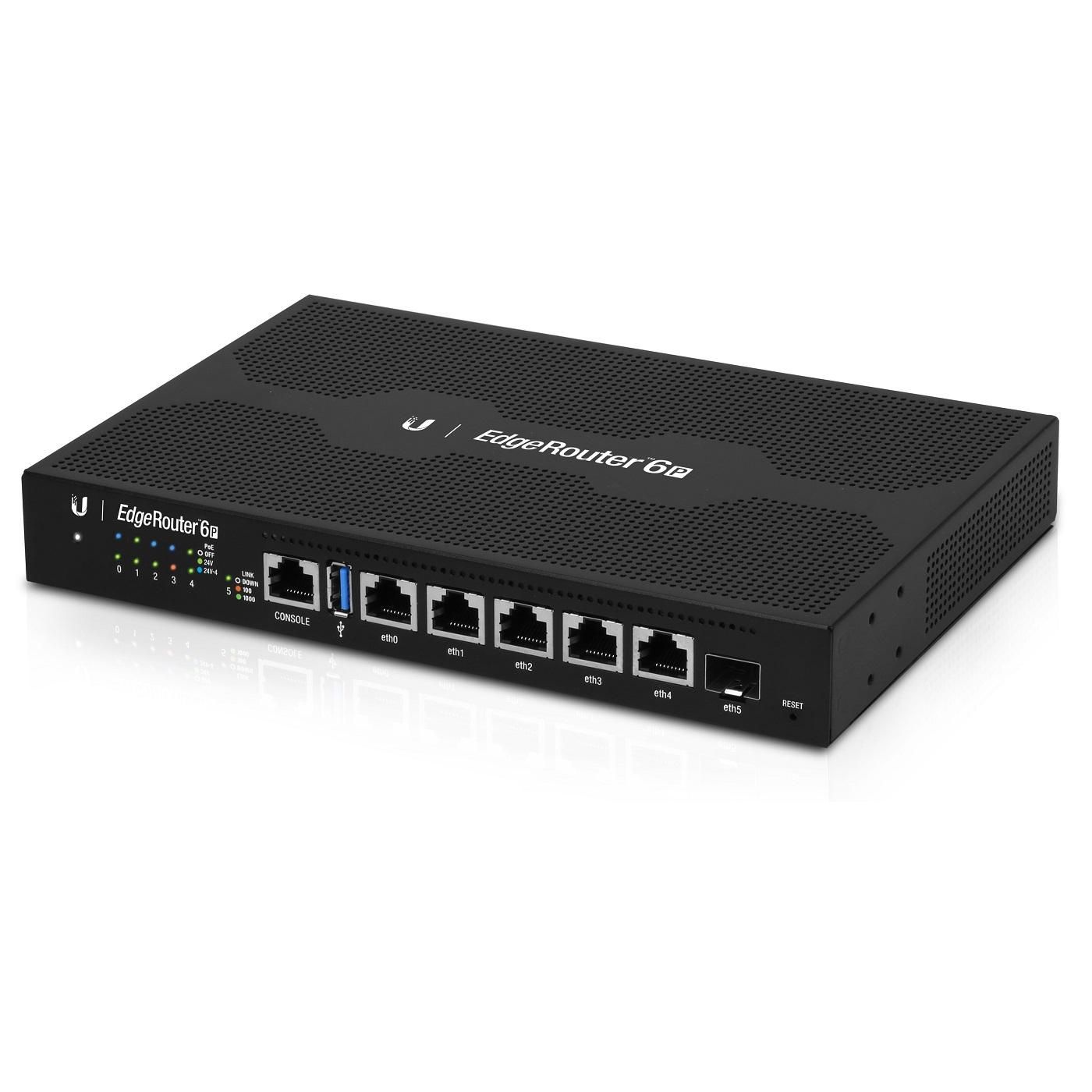

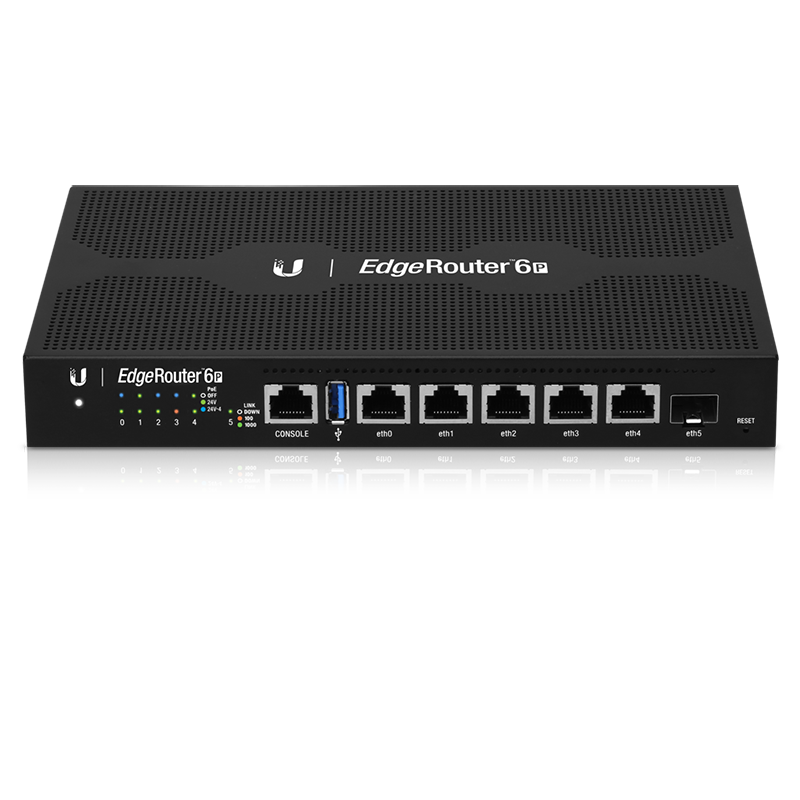

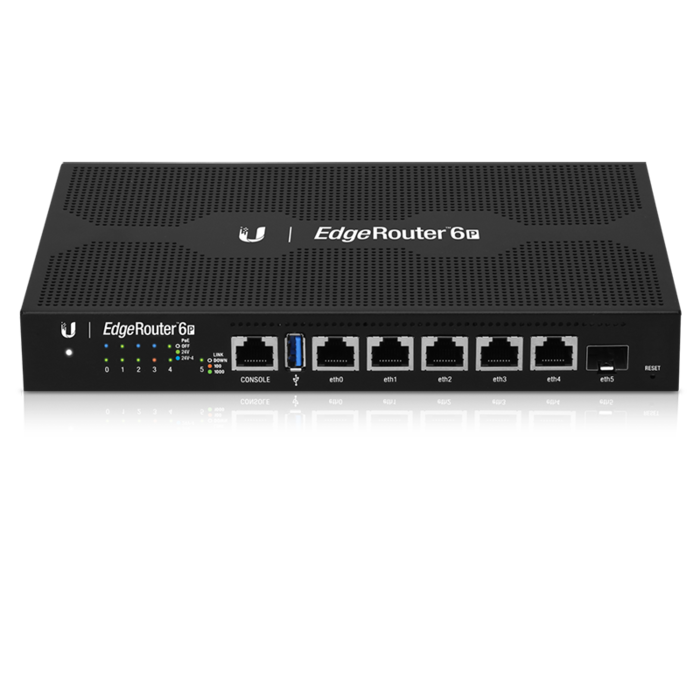

Ubiquiti EdgeRouter 6P (ER-6P)

The all-new EdgeRouter 6 brings high-performance at disruptive pricing to a new level. With a 50% increase in performance compared to the EdgeRouter Pro, the EdgeRouter 6 delivers the performance your network needs. Paired with our feature-rich EdgeOS makes this a versatile tool in both Carrier-Grade and Enterprise networks.

((5) Gigabit RJ45 routing ports
(24V PoE support on RJ45 ports
(1) Gigabit SFP port
3.4 million packets per second for 64-byte packets
6 Gbps for packets 256 bytes or larger in size
Silent, fanless operation
Compact, durable metal case
Specifications EdgeRouter 6

Dimensions: 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22")
Weight: 730 g (1.61 lb)
Max. Power Consumption: 16W (Excludes PoE Output)
Power Method: External AC/DC Power Adapter, 60W (24V, 2.5A) (Included)
Power Supply: External AC/DC Adapter
Supported Voltage Range: 16 - 30VDC
Button: Reset
LEDs:
- Data Ports - Speed/Link/Activity, PoE
- SFP Data - Port Link/Activity
Interfaces:
- Management: (1) RJ45 Serial Port, (6) Ethernet Ports (Default eth0)
- Networking: (5) 10/100/1000 RJ45 Ports with PoE, (1) 1 Gbps SFP Port
Layer 3 Forwarding Performance:
- Packet Size: 64 Bytes - 3,400,000 pps
- Packet Size: 512 Bytes or Larger - 6 Gbps (Line Rate)
Processor: 4-Core 1 GHz, MIPS64
System Memory :1 GB DDR3 RAM
On-Board Flash Storage :4 GB eMMC, 8 MB SPI NOR
Mounting: Wall, Rack*
Operating Temperature: -10 to 50 C (14 to 122 F)
Operating Humidity :10 - 90% Noncondensing
Certifications: CE, FCC, IC
Package contents

EdgeRouter 6, Wall Mount Screws (2), Wall Mount Anchors (2), Ground Screw, Power Cord, Power Adapter (24V, 2.5A), Cable Clip.
