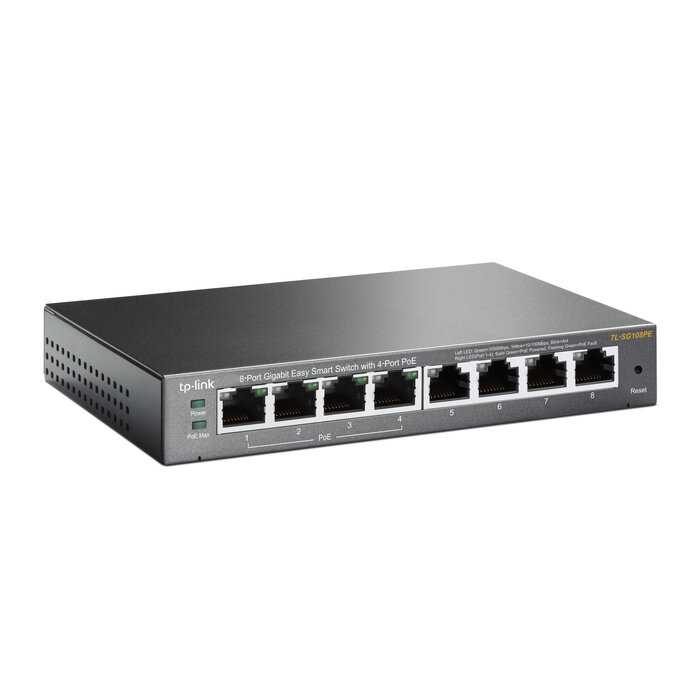

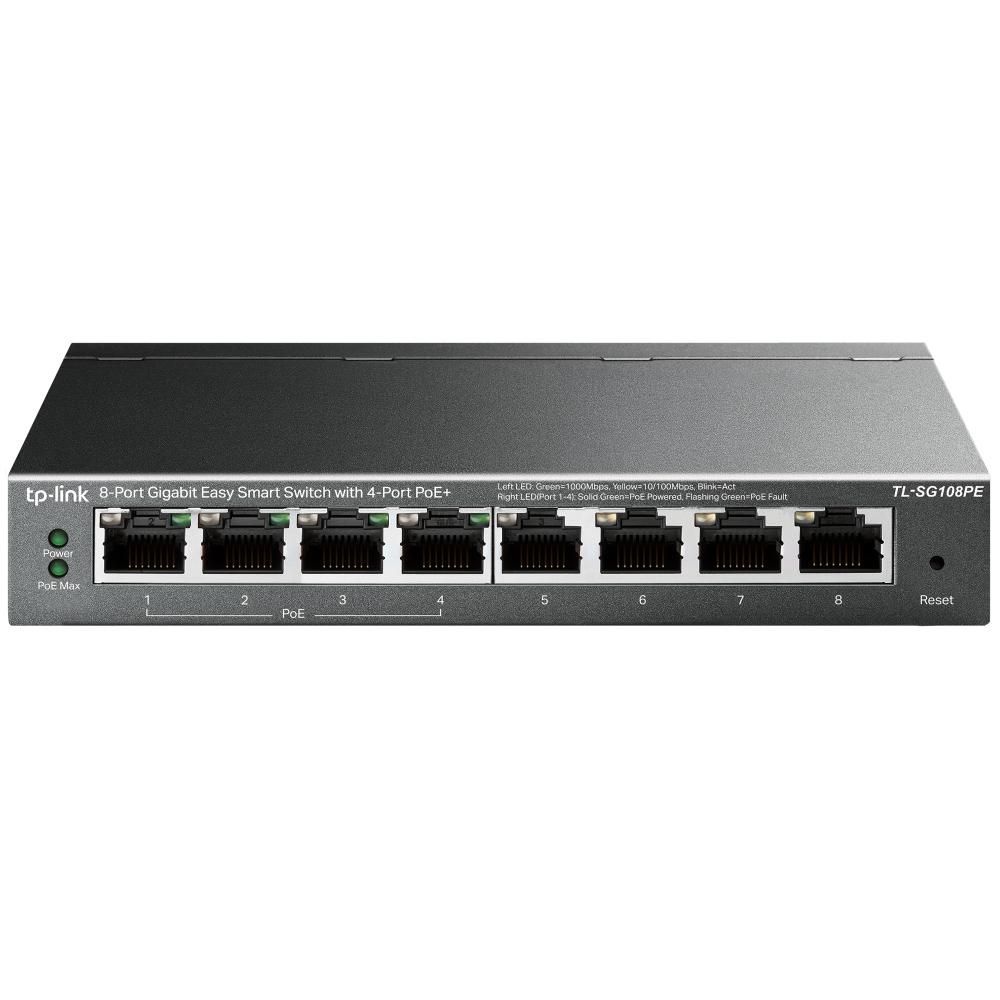

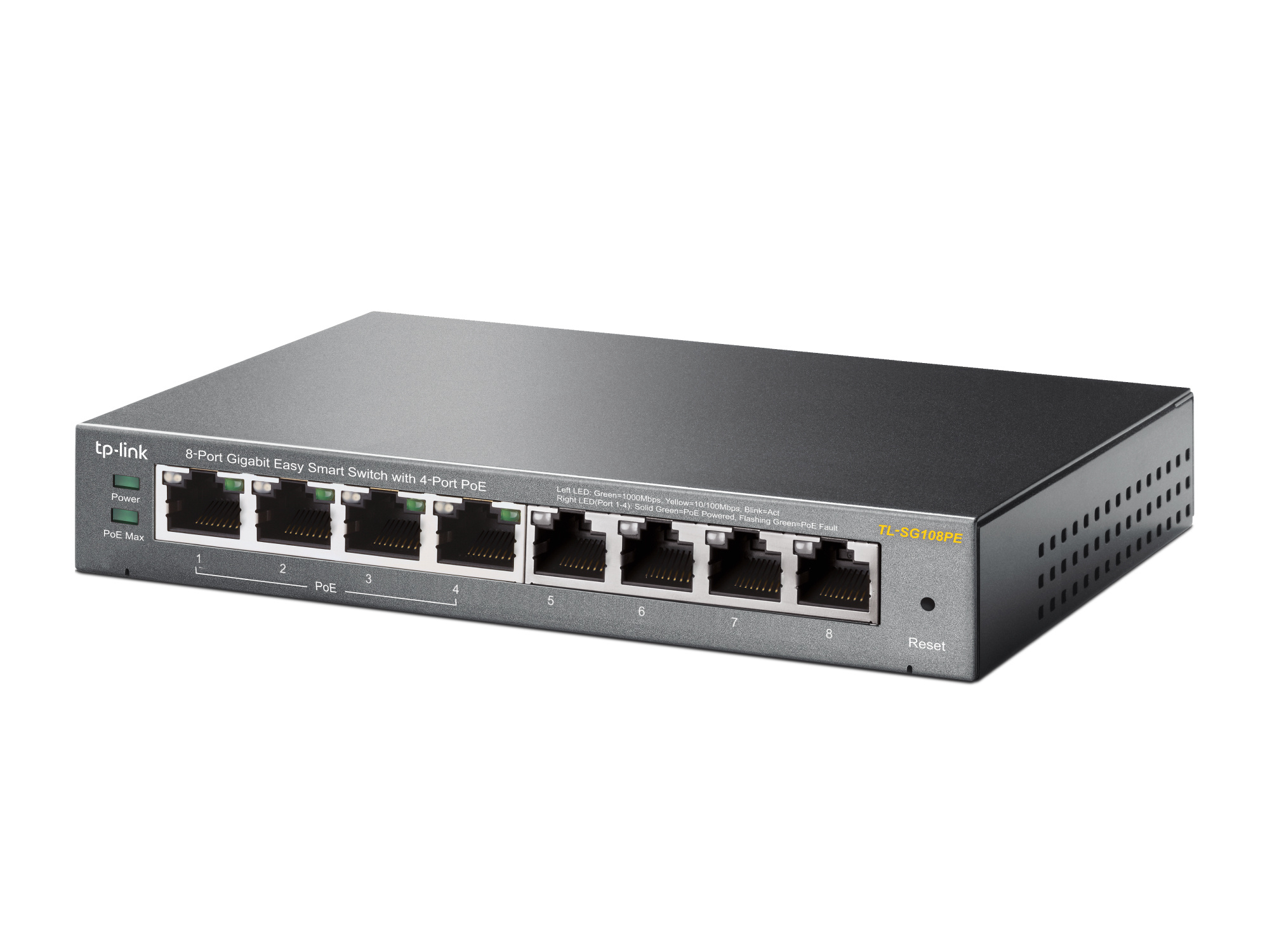

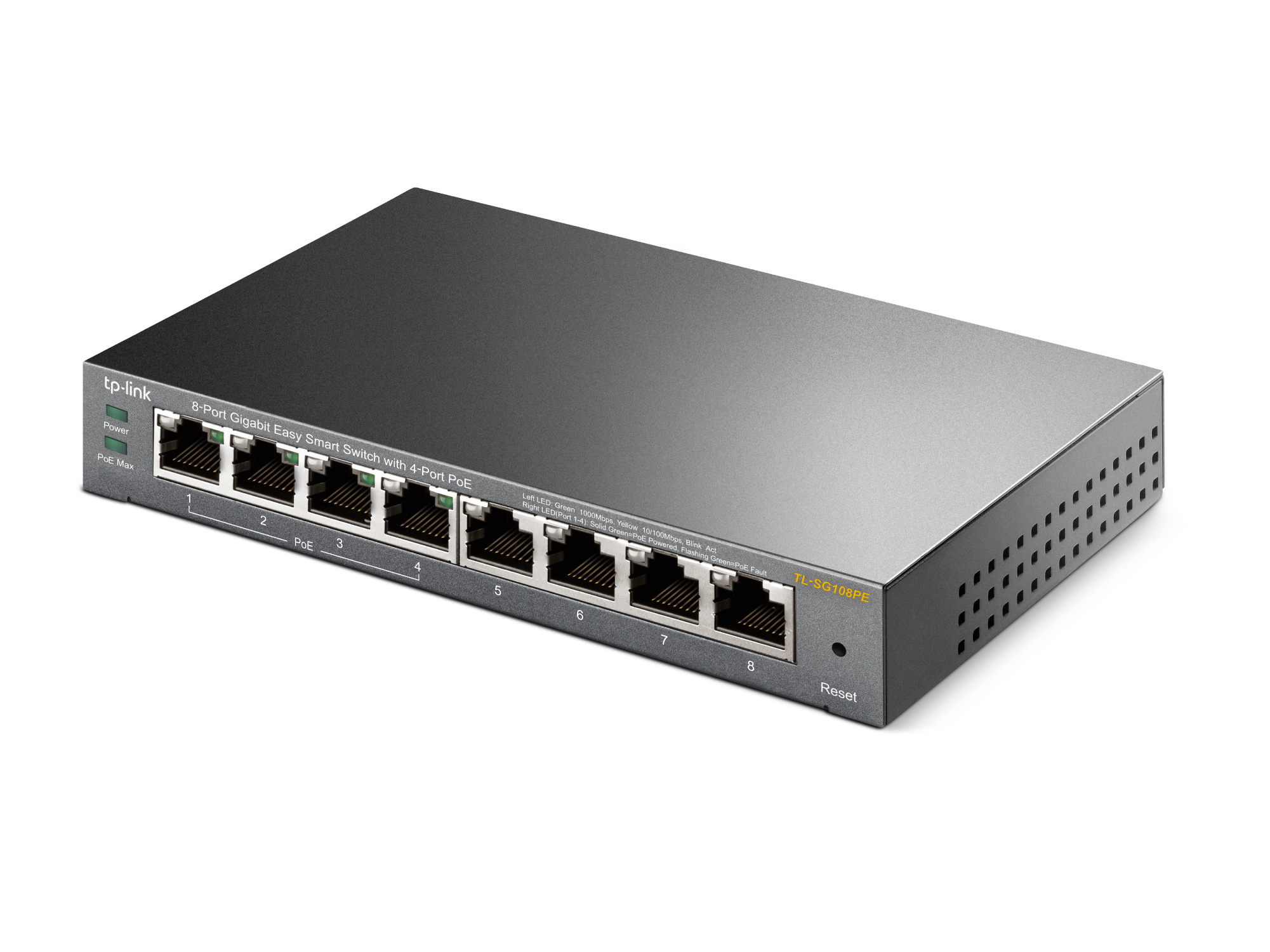

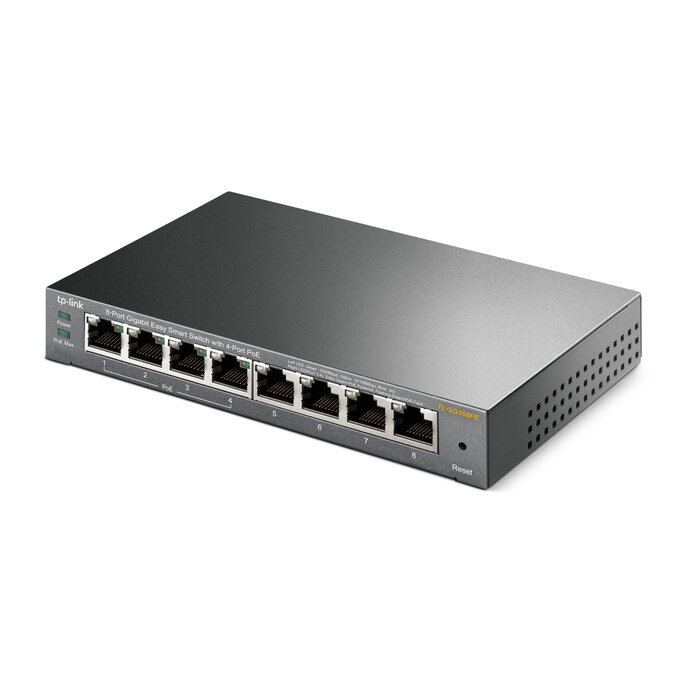

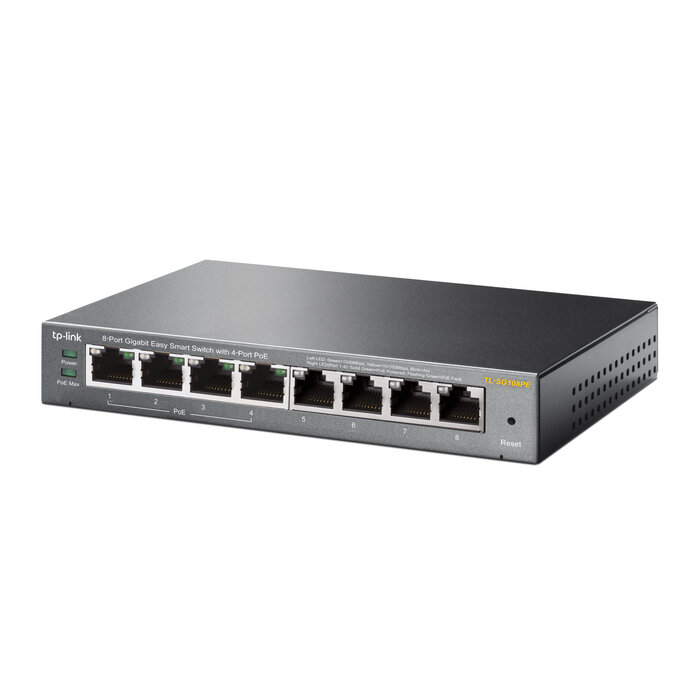

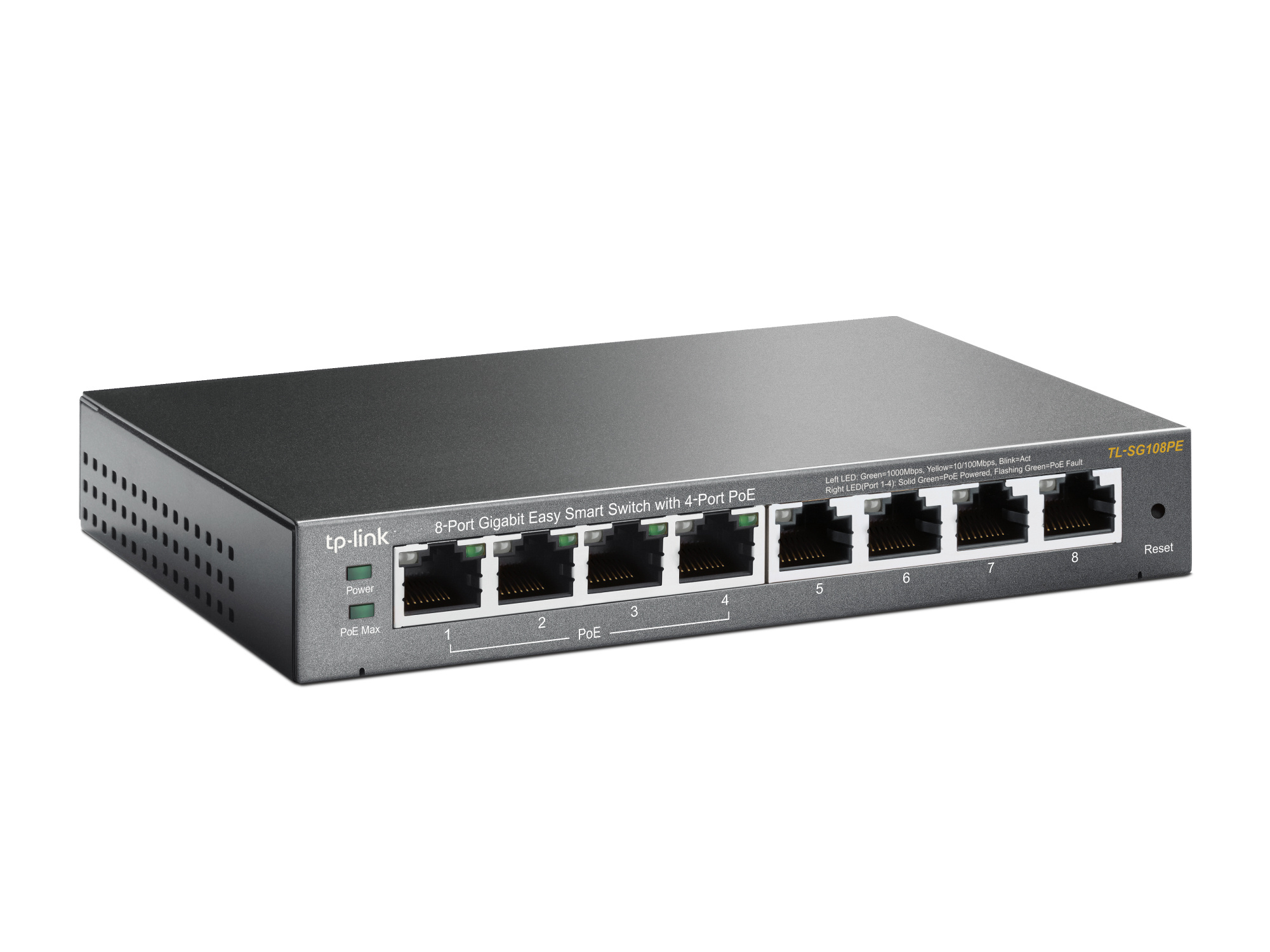

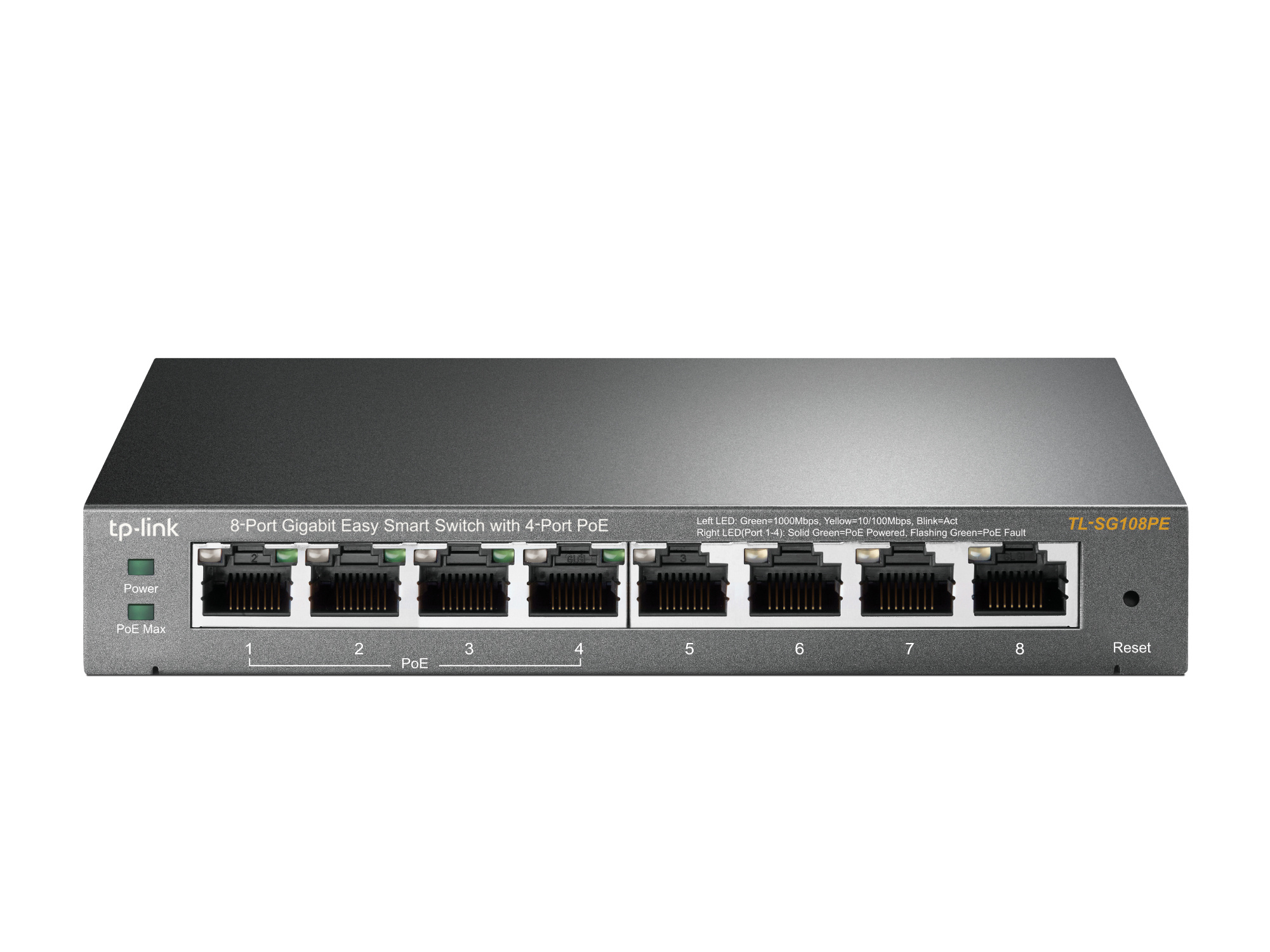

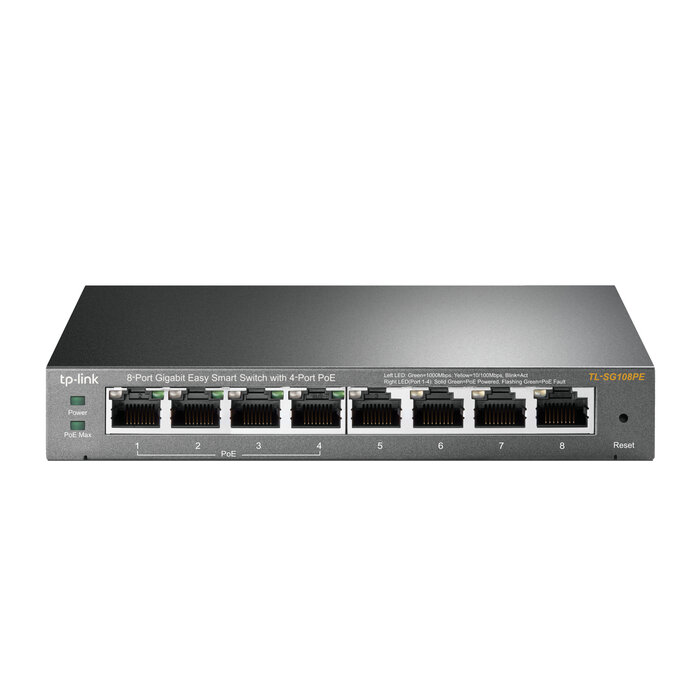

Name: TP-Link TP-Link TL-SG108PE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Brand: TP-Link
SKU: TL-SG108PE
Price: 58.00 EUR
Availability: InStock

Bullets

Managed L2 Web-gebaseerd management
Quality of Service (QoS)
Aantal basis-switching RJ-45 Ethernet-poorten: 8
Cat3, Cat4, Cat5, Cat5e, Cat6
MAC-adrestabel: 4000 entries Switchingcapaciteit: 16 Gbit/s
DC Vermogenstoevoer inclusief Power over Ethernet (PoE)

Reasons to buy

Technical details
Quality of Service (QoS) support
Web-based management
Auto MDI/MDI-X
Switching capacity	16Gbit/s
MAC address table	4000entries
Packet buffer memory	1.5MB
Input current	1.25A
Input voltage	48V
Power consumption (max)	65.2W
Power over Ethernet (PoE)
Operating temperature (T-T)	0 - 40°C
Storage temperature (T-T)	-40 - 70°C
Operating relative humidity (H-H)	10 - 90procent
Storage relative humidity (H-H)	5 - 95procent
Heat dissipation	256.19BTU/h
Width	158mm
Depth	101mm
Height	25mm
User guide
Package width	131mm
Package depth	196mm
Package height	121mm
Package weight	890g
Switch type	ManagedTekst
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3xTekst
Cable types supported	Cat3,Cat4,Cat5,Cat5e,Cat6Tekst
Product colour	BlackTekst
LED indicators	Activity,Link,PoE,Power,Speed,StatusTekst
Certification	FCC, CE, RoHSTekst
Power source	DCTekst
Cables included	ACTekst
Package type	BoxTekst

Network
10G support
Port mirroring
Link aggregation
Broadcast storm control
Auto-negotiation
VLAN support
Number of VLANs	32Tekst
Forwarding rate	11.9Mpps
Store-and-forward
Jumbo frames support
Jumbo frames	15000Tekst
IGMP snooping
Switch layer	L2Tekst
Virtual LAN features	Port-based VLANTekst

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8Tekst
Gigabit Ethernet (copper) ports quantity	8Tekst
Power over Ethernet (PoE) ports quantity	4Tekst
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)Tekst

Power
Power supply included
Power over Ethernet (PoE) power per port	15.4W
Total Power over Ethernet (PoE) budget	64W

Security
Loop protection

Other features
Harmonized System (HS) code	85176990Tekst

Kenmerken
Release date (DD/MM/YYYY)	04-02-2016

Show all specificationsShow less
