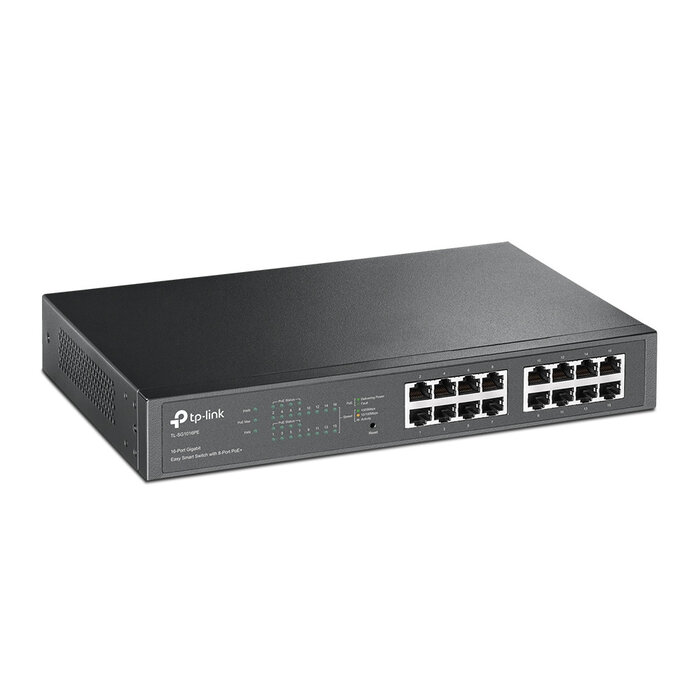

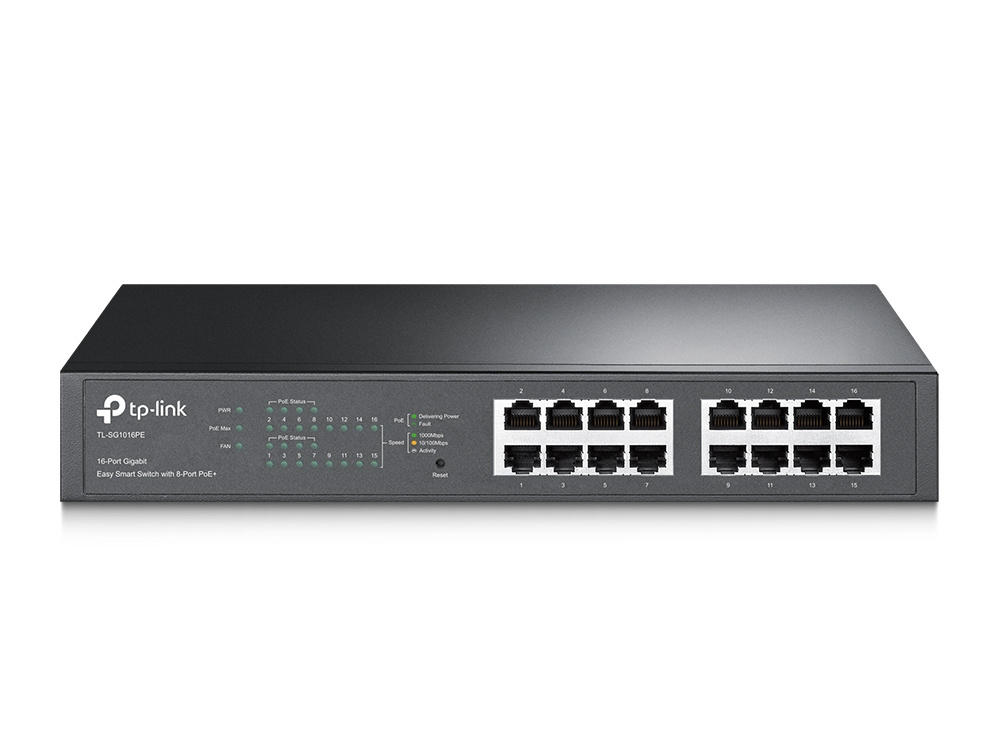

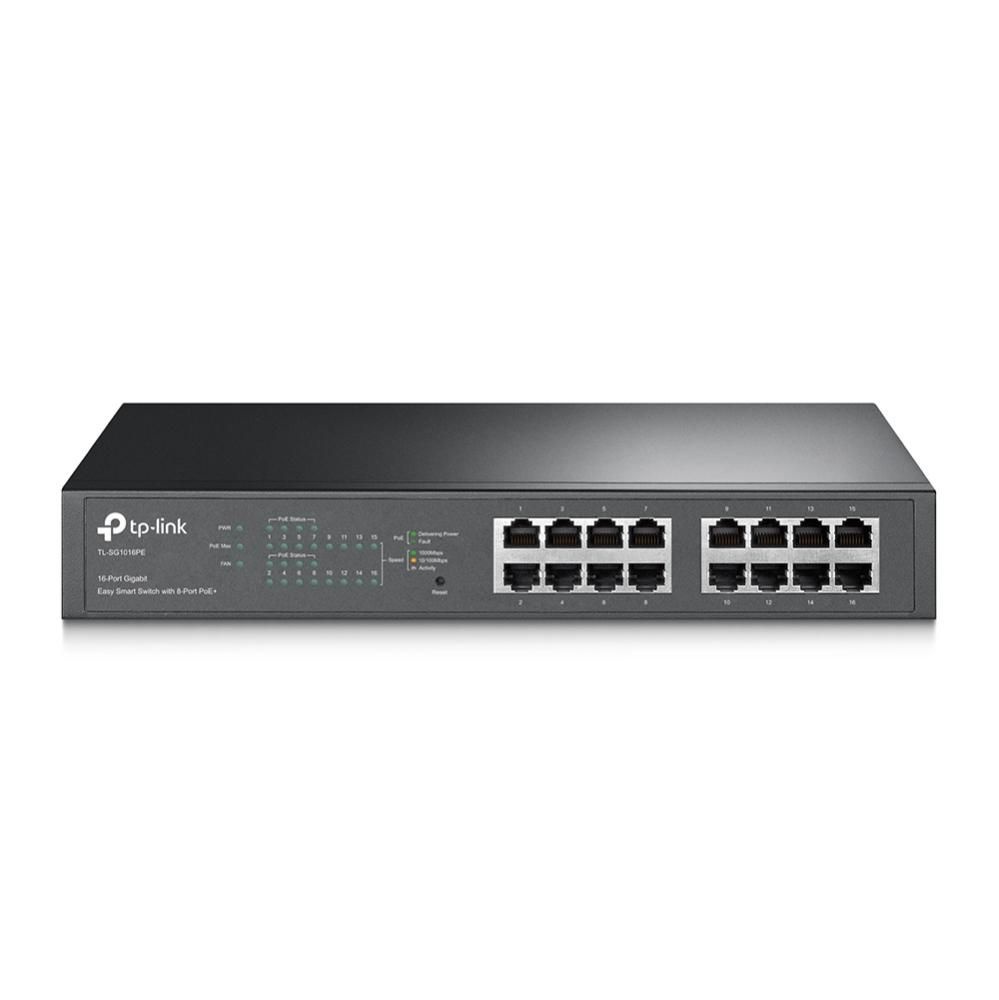

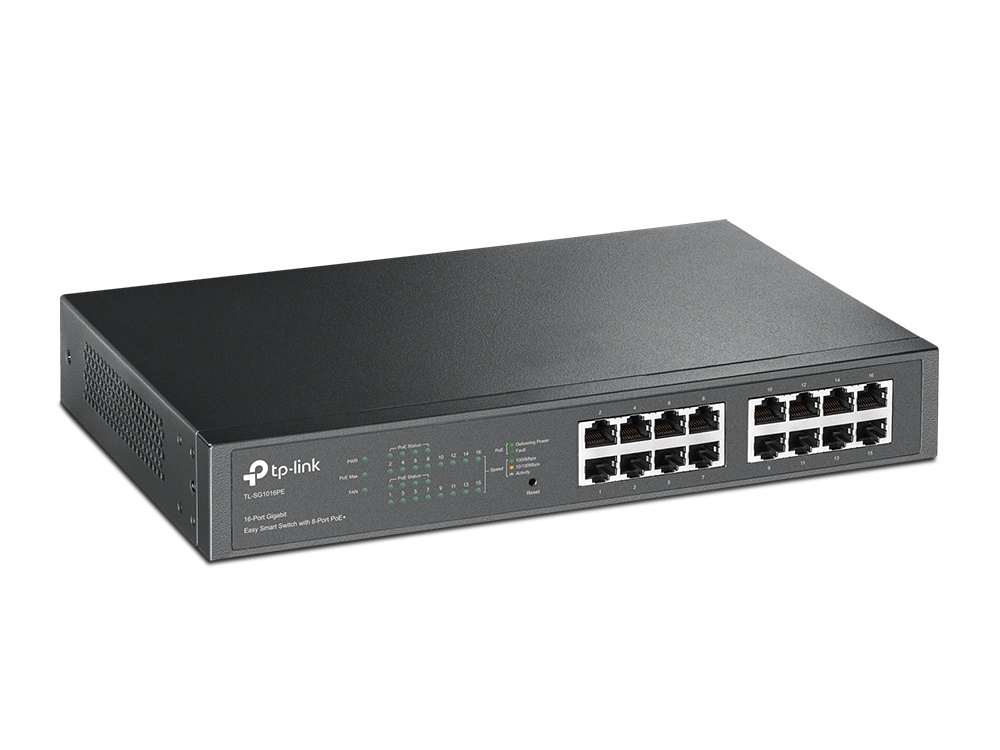

Name: TP-Link TP-Link TL-SG1016PE, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage
Brand: TP-Link
SKU: TL-SG1016PE
Price: 136.00 EUR
Availability: InStock

Bullets

Managed L2 Web-gebaseerd management
Quality of Service (QoS)
Aantal basis-switching RJ-45 Ethernet-poorten: 16
Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T
MAC-adrestabel: 8000 entries Switchingcapaciteit: 32 Gbit/s
1U Rack-montage
AC/PoE Vermogenstoevoer inclusief Power over Ethernet (PoE)

Reasons to buy

Technical details
Quality of Service (QoS) support
Web-based management
Flow control support
Auto MDI/MDI-X
Switching capacity	32Gbit/s
MAC address table	8000entries
Packet buffer memory	4.1MB
Rack mounting
Stackable
Number of fans	1fan(s)
Maximum cable length	100m
Power consumption (max)	124.4W
Power over Ethernet (PoE)
Operating temperature (T-T)	0 - 40°C
Storage temperature (T-T)	-40 - 70°C
Operating relative humidity (H-H)	10 - 90procent
Storage relative humidity (H-H)	5 - 90procent
Width	294mm
Depth	180mm
Height	44mm
User guide
Package width	250mm
Package depth	400mm
Package height	80mm
Package weight	2280g
Sustainability compliance
Switch type	ManagedTekst
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3xTekst
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6Tekst
Form factor	1UTekst
Product colour	ZwartTekst
Housing material	MetaalTekst
LED indicators	JaTekst
Compatible operating systems	WindowsTekst
Power source	AC/PoETekst
AC input voltage	100 - 240Volt
AC input frequency	50/60Hertz
Cables included	ACTekst
Package type	DoosTekst
Compliance certificates	CE, Federal Communications Commission (FCC), RoHSTekst

Network
10G support
Port mirroring
Link aggregation
Broadcast storm control
Auto-negotiation
VLAN support
Number of VLANs	4000Tekst
Forwarding rate	23.8Mpps
Store-and-forward
Jumbo frames support
Jumbo frames	10000Tekst
IGMP snooping
Switch layer	L2Tekst
Virtual LAN features	Tagged VLAN, Port-based VLANTekst

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16Tekst
Gigabit Ethernet (copper) ports quantity	16Tekst
Power over Ethernet plus (PoE+) ports quantity	8Tekst
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)Tekst
Power connector	AC-in-aansluitingTekst
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TTekst

Power
Power supply included
Power over Ethernet (PoE) power per port	30W
Total Power over Ethernet (PoE) budget	110W

Packaging data
Rack mount kit
Resource CD

Data transmission
Number of queues	4Tekst

Features
Release date (DD/MM/YYYY)	07-05-2017

Show all specificationsShow less
