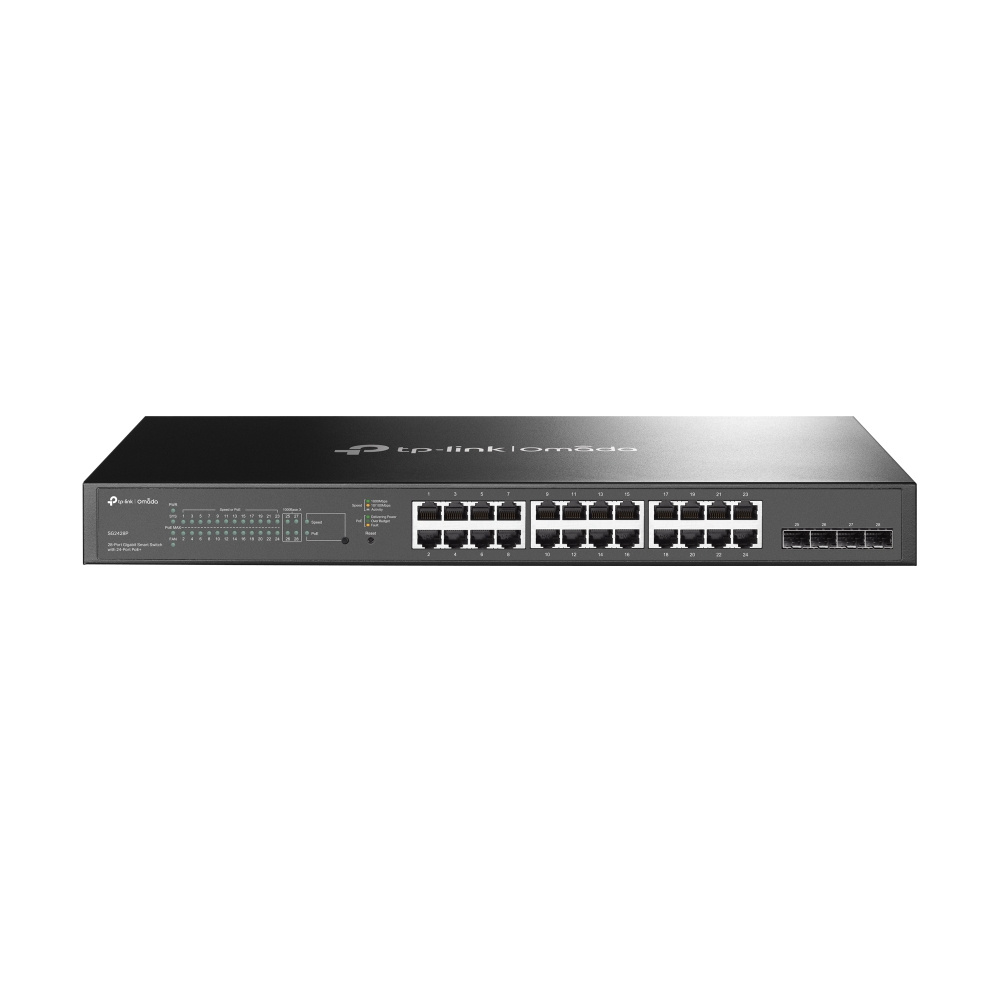

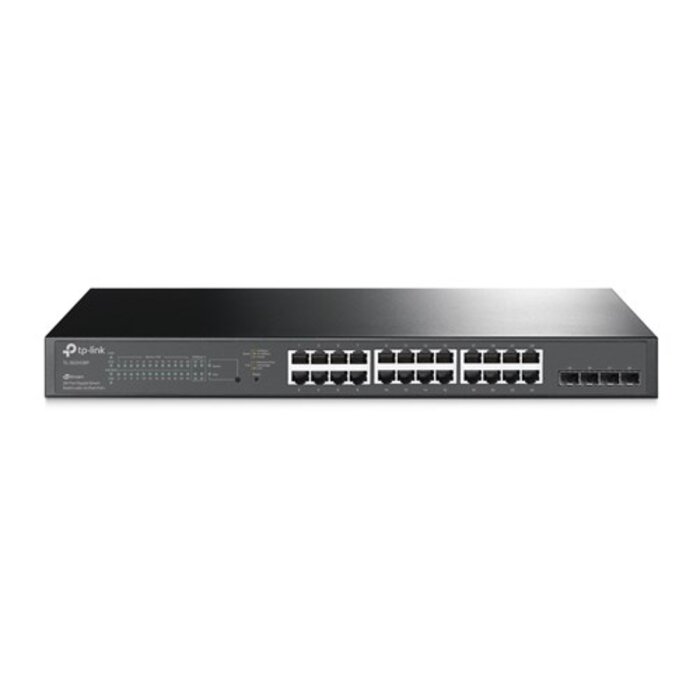

Name: TP-Link TP-Link Omada TL-SG2428P, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U
Brand: TP-Link
SKU: SG2428P
Price: 240.80 EUR
Availability: InStock

Bullets

Managed L2/L2+ Web-gebaseerd management SNMPv1/v2c/v3, SNTP
Quality of Service (QoS)
Aantal basis-switching RJ-45 Ethernet-poorten: 24
Cat3, Cat4, Cat5, Cat5e 10BASE-T, 1000BASE-T
MAC-adrestabel: 8000 entries Switchingcapaciteit: 56 Gbit/s
Access Control List (ACL)
1U Rack-montage
AC Vermogenstoevoer inclusief Power over Ethernet (PoE)

Reasons to buy

Network
Quality of Service (QoS) support
Web-based management
10G support
Port mirroring
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
VLAN support
Number of VLANs	4000Tekst
Switching capacity	56Gbit/s
Forwarding rate	41.66Mpps
MAC address table	8000entries
Packet buffer memory	4.1MB
Multicast support
Firmware upgradeable
Power over Ethernet (PoE)
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3zTekst
Copper ethernet cabling technology	10BASE-T, 1000BASE-T, 10BASE-T,1000BASE-TTekst
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat3,Cat4,Cat5,Cat5eTekst
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS, HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLSTekst

Technical details
Operating temperature (T-T)	0 - 50°C
Storage temperature (T-T)	-40 - 70°C
Operating relative humidity (H-H)	10 - 90procent
Storage relative humidity (H-H)	5 - 90procent
Width	440mm
Depth	220mm
Height	44mm
Product colour	Black, BlackTekst
Certification	CE, FCC, RoHSTekst

Beveiliging
System event log
Access Control List (ACL)
IGMP snooping
SSH/SSL support
BPDU filtering/protection
IP-MAC-Port binding
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 clientTekst
Authentication type	RADIUS, RADIUSTekst
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), SP,WRR+SP,Weighted Round Robin (WRR)Tekst

Kenmerken
Release date (DD/MM/YYYY)	25-01-2024
Flow control support
Jumbo frames support
Jumbo frames	9000Tekst
Number of fans	2ventilator(en)
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN, MAC address-based VLAN,Protocol-based VLAN,Voice VLANTekst
Fiber ethernet cabling technology	1000BASE-X, 1000BASE-XTekst
Form factor	1UTekst

Power
Power consumption (max)	301.1W
Power over Ethernet (PoE) power per port	30W
Total Power over Ethernet (PoE) budget	250W
Power source	ACTekst
AC input voltage	100 - 240V
AC input frequency	50/60Hz

Other features
Rack mounting
Heat dissipation	1052.94BTU/h
Switch type	ManagedTekst
MIB support
Management protocols	SNMPv1/v2c/v3, SNTPTekst

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24Tekst
Gigabit Ethernet (copper) ports quantity	24Tekst
SFP module slots quantity	4Tekst
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)Tekst

Packaging content
Power supply included
User guide
Rack mount kit
Cables included	AC, ACTekst

Management features
ARP inspection
Switch layer	L2/L2+Tekst

Data-uitwisseling
Number of queues	8Tekst

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24Tekst

Show all specificationsShow less
