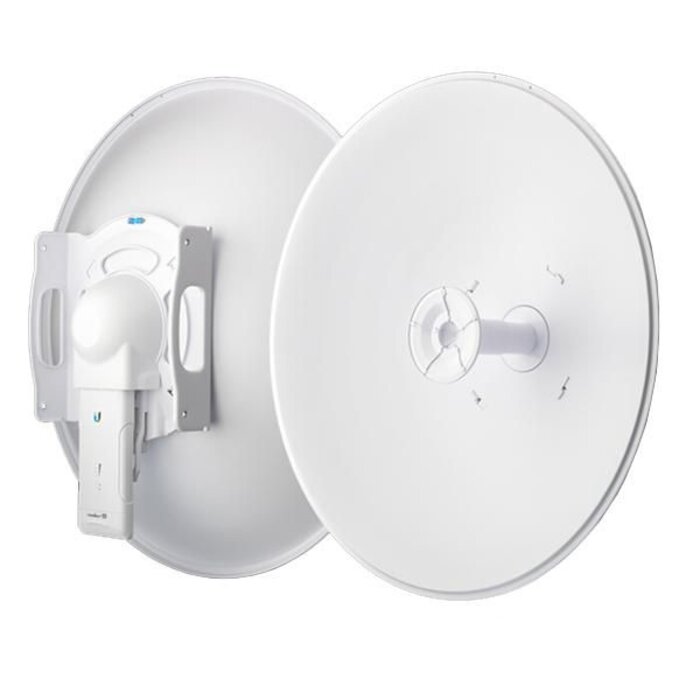

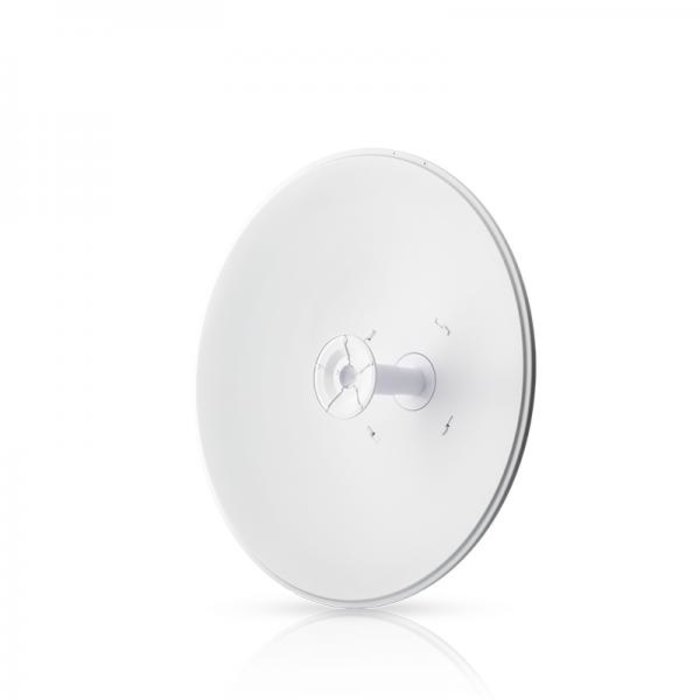

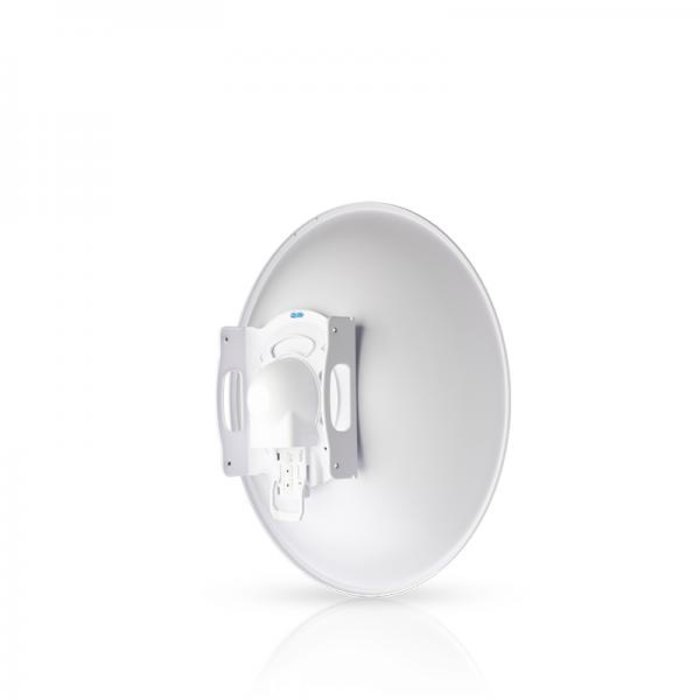

Ubiquiti RocketDish 30 dBi 5 gHz LW (RD-5G30-LW)

Ubiquiti RocketDish 30 dBi 5 gHz LW

Merk: Ubiquiti

Pair a RocketDish antenna with a Rocket basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:

• Lightweight yet robust components lessen the load.
• The extended depth of the dish reflector rejects noise interference in co-location deployments.
• The design of the mounting bracket allows for ease of installation on a pole or tower.

Specifications RD-5G30-LW

Dimensions: 650 x 650 x 386 mm (25.6 x 25.6 x 15.2)
Weight: 7.4 kg (16.31 lb)
Frequency Range: 5.1 - 5.9 GHz
Gain: 30 dBi
HPOL Beamwidth: 5.8 degree (3 dB)
VPOL Beamwidth: 5.8 degree (3 dB)
F/B Ratio: 30 dB
Max. VSWR: 1.6:1
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included

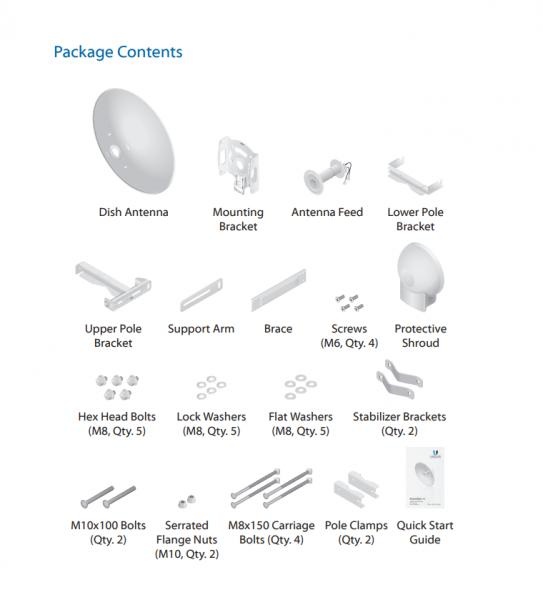

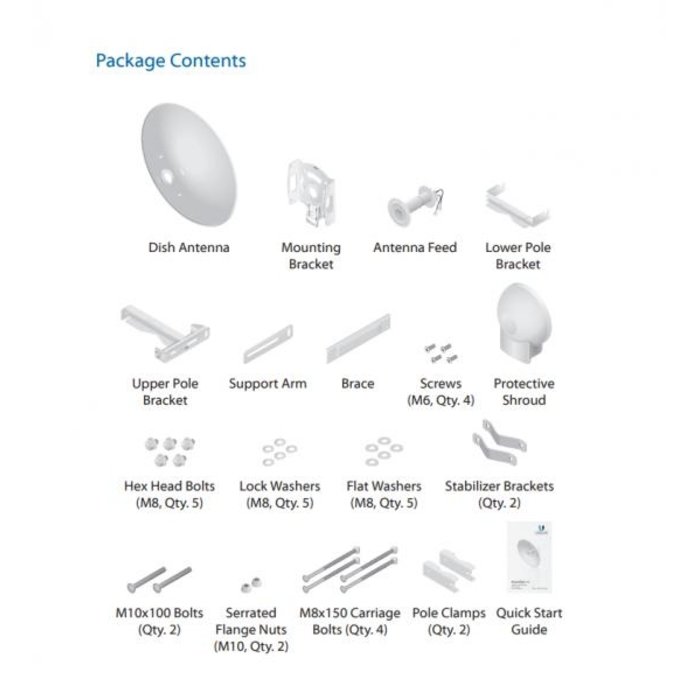

Package Contents

Dish Antenna, Mounting Bracket, Antenna Feed, Lower Pole Bracket, Upper Pole Bracket, Support Arm, Brace, Screws (4), Protective Shroud, Hex Head Bolts (4), Lock Washers (5), Flat Washers (5), Stabilizer Brackets (2), M10x100 Bolts, Serrated Flange Nuts(2), Carriage Bolts (4), Pole Clamps (2), Quick Start Guide.

* Indien dit product boven de toegestane limieten gebruikt wordt, is dit niet langer vergunningsvrij en zelfs illegaal (max zendvermogen: 100 mW op 2,4GHz en 200 mW op 5GHz). Wij raden u aan de standaard configuratie v.w.b. de landeninstelling en/of vermogensinstelling van de apparatuur niet te wijzigen. Het gebruik van meer dan het wettelijke toegestane vermogen kan leiden tot verminderde bruikbaarheid van WIFI in uw onmiddellijke omgeving.
