Ubiquiti PrismStation 5AC (PS-5AC)

Ubiquiti PrismStation 5AC

Merk: Ubiquiti

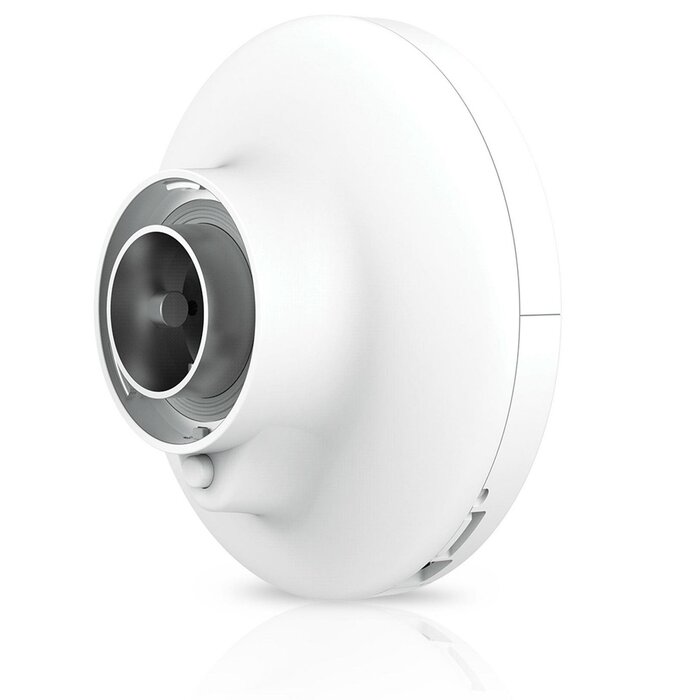

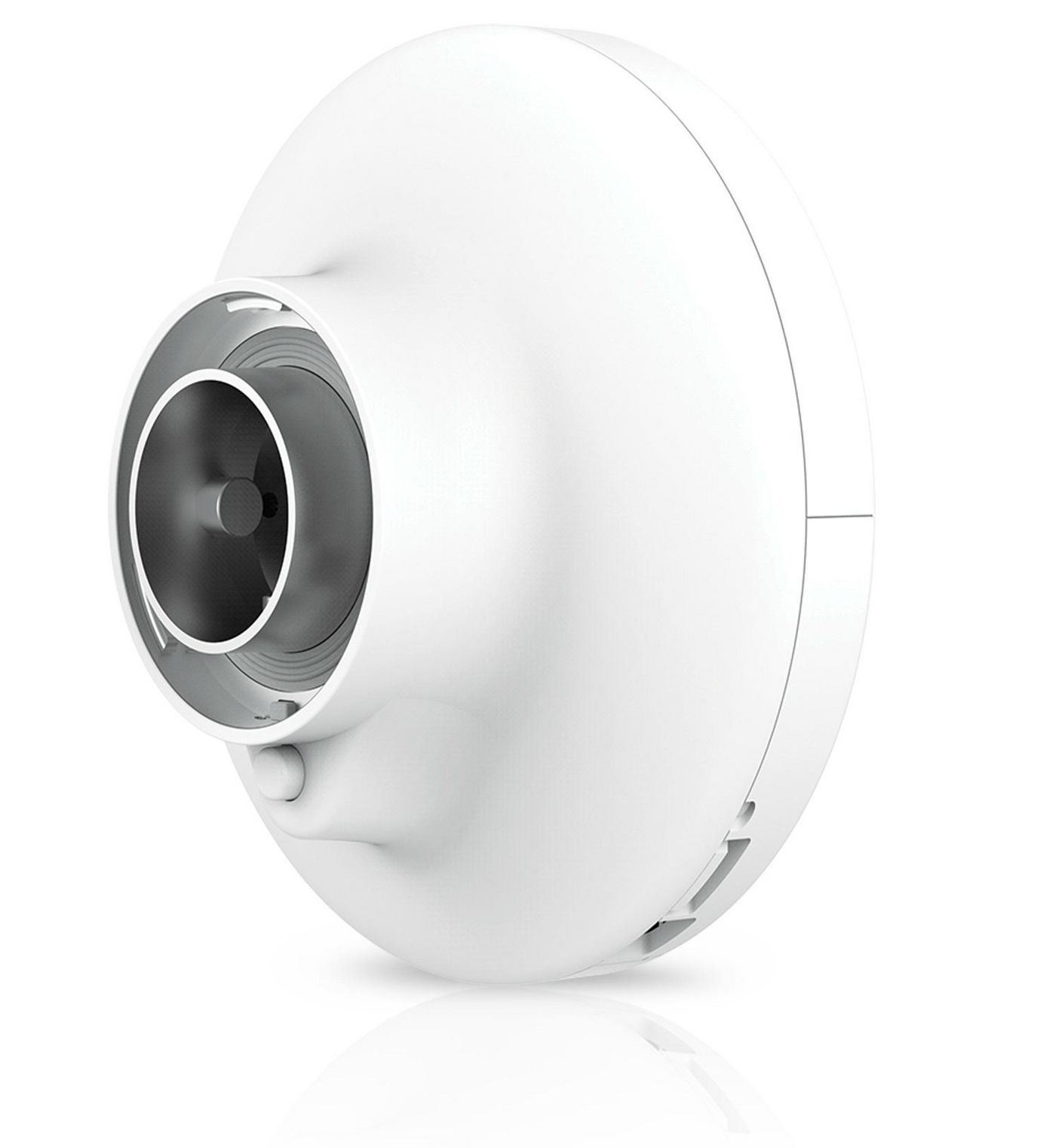

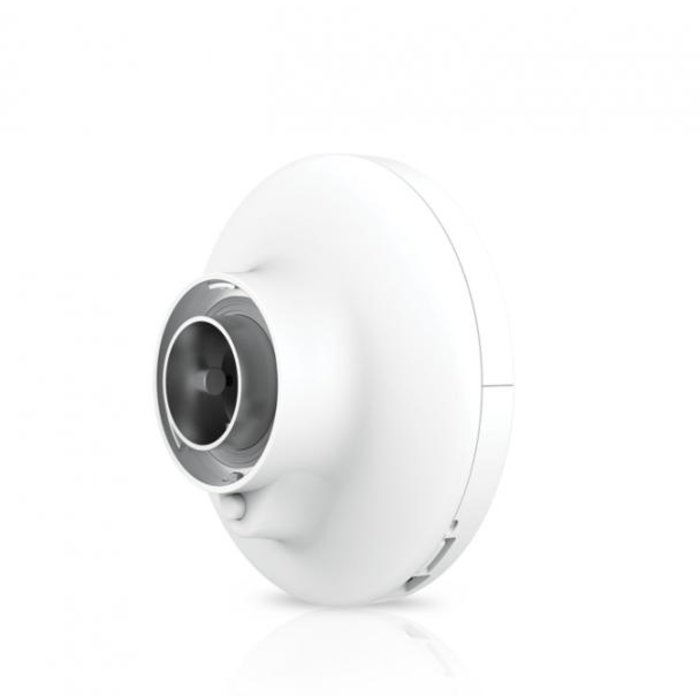

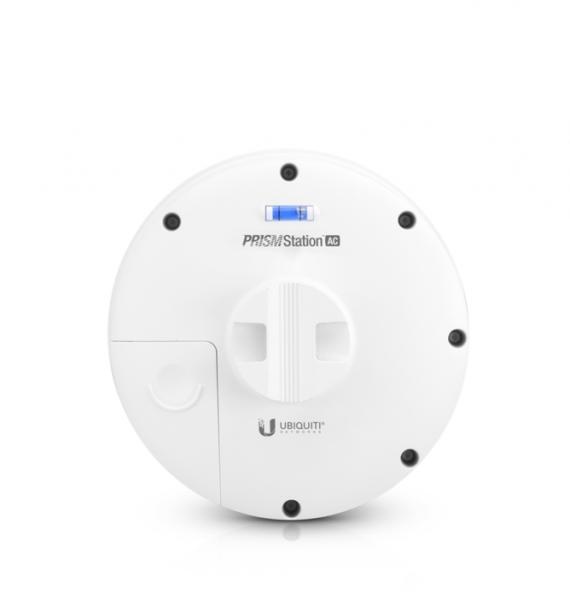

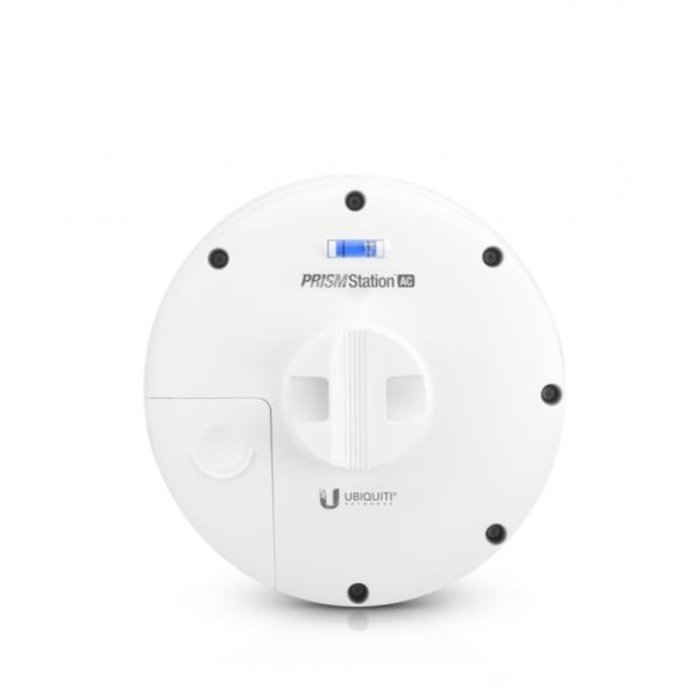

Featuring a die-cast aluminum base and interchangeable horn antenna, the PrismStation 5AC with proprietary airMAX ac chipset and dedicated management Wi-Fi isolates beam communications between your devices. Ideal as an AP in crowded RF environments such as urban areas.

Specifications PrismStation 5AC

Dimensions: 155 x 155 x 104 mm (5.16 x 5.16 x 4.09")
- Mounting Hardware Only: 83 x 117 x 69 mm (3.27 x 4.61 x 2.72")
Weight: 770 g (1.70 lb)
- Mounting Hardware Only: 790 g (1.74 lb)
Networking Interface: (1) 10/100/1000 Ethernet Port
RF Connector: (1) GPS*
LED: Power
Max. Power Consumption: 10W
Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 20 to 26VDC
Processor Specs: MIPS 74 Kc
Memory: 128 MB DDR2 SDRAM, 16 M NOR FLASH
Max. VSWR: 2:1
Polarization: Dual-Linear
Wind Loading : 31 N @ 200 km/h (7 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Operating Temperature: -40 to 70 C (-40 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
Mounting: Pole-Mount (Kit Included)
ESD/EMP Protection: +/- 24 kV Contact/Air
Certifications: FCC, IC, CE

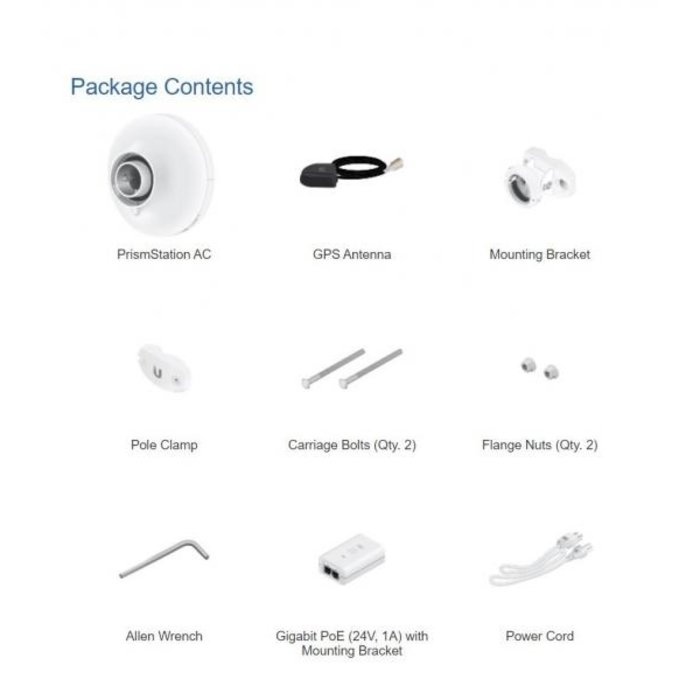

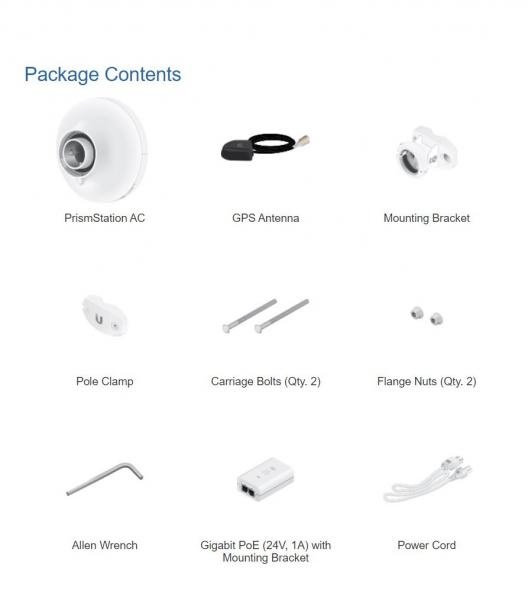

Package Contents

PrimStation AC, GPS Antenna, Mounting Bracket, Pole Clamp, Carriage Bolts (2), Flange Nuts (2), Allen Wrench, Gigabit PoE (24V, 1A) with Mounting Bracket, Power Cord.
