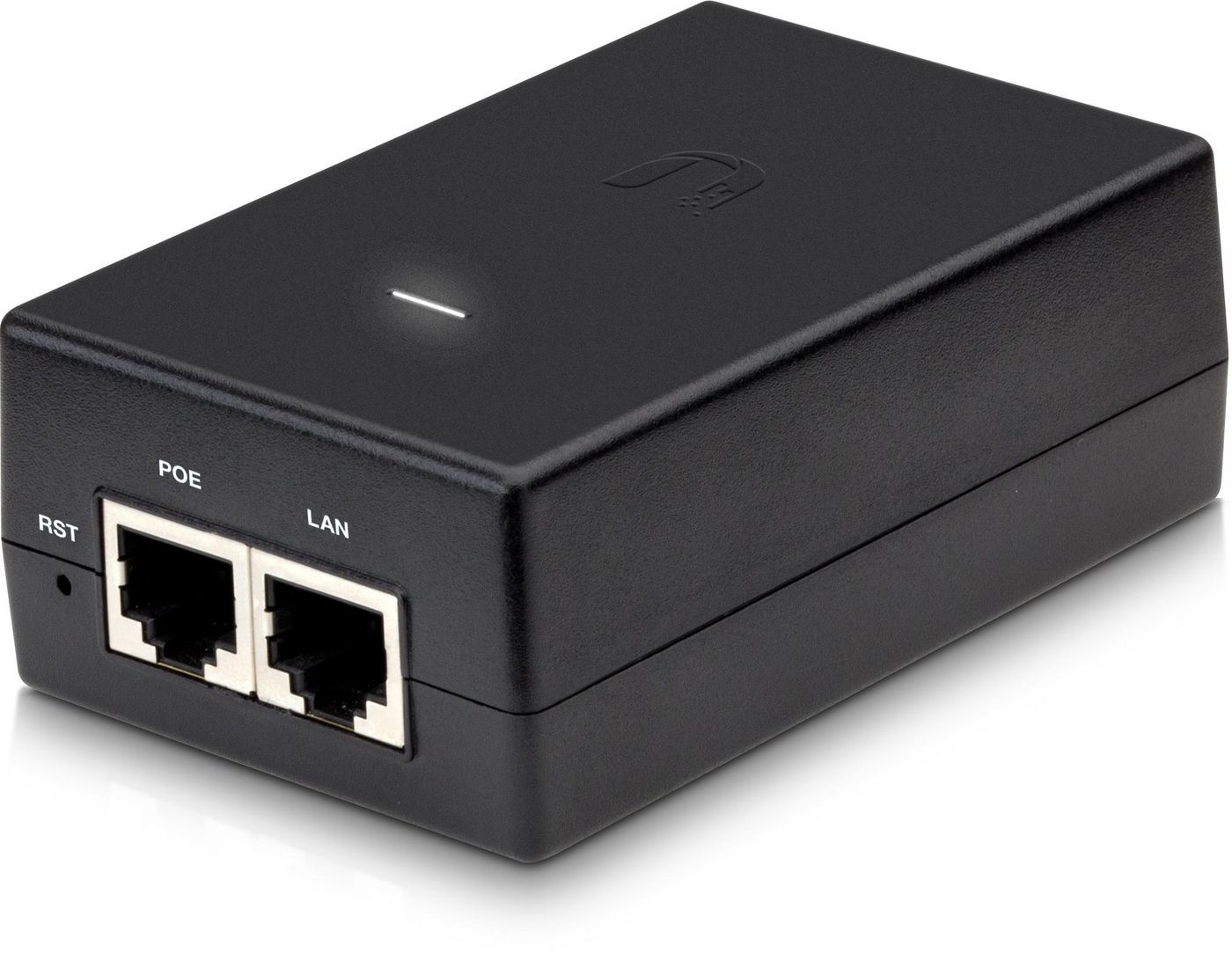

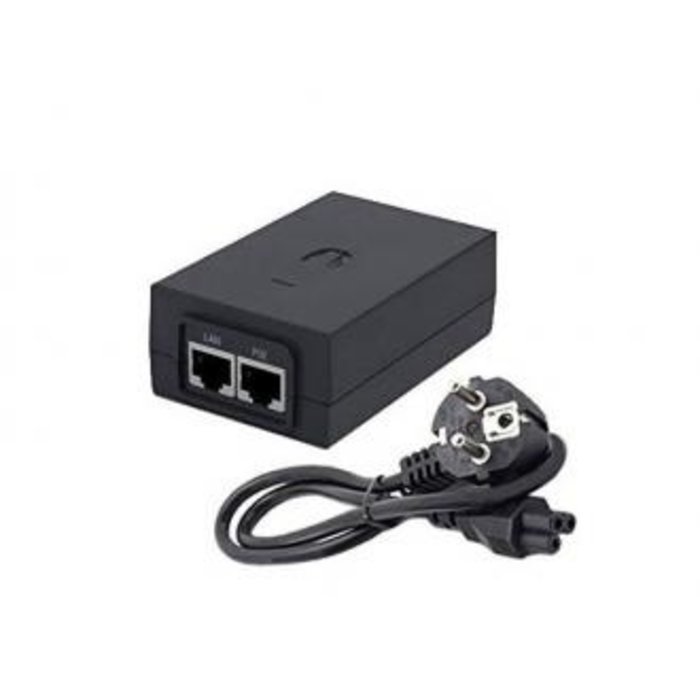

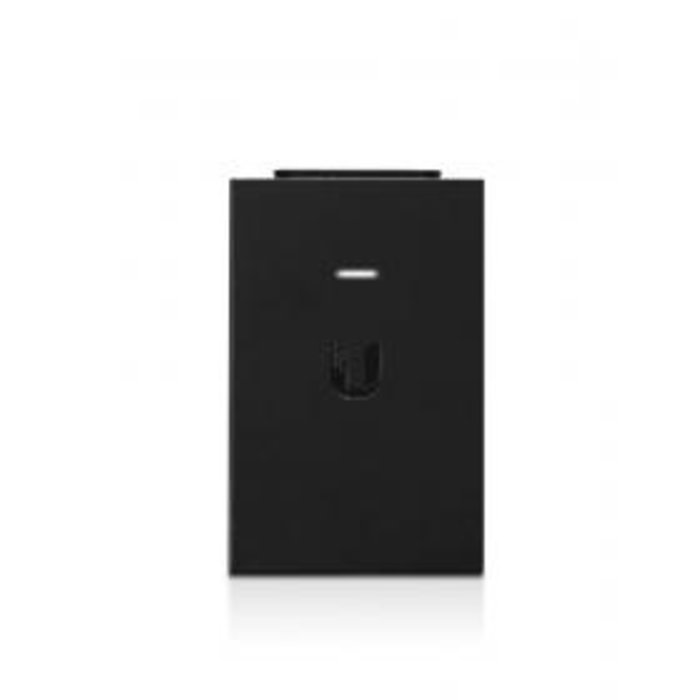

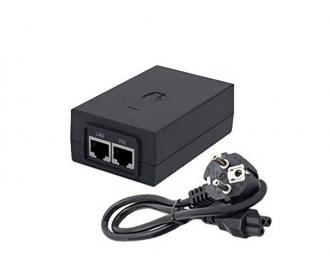

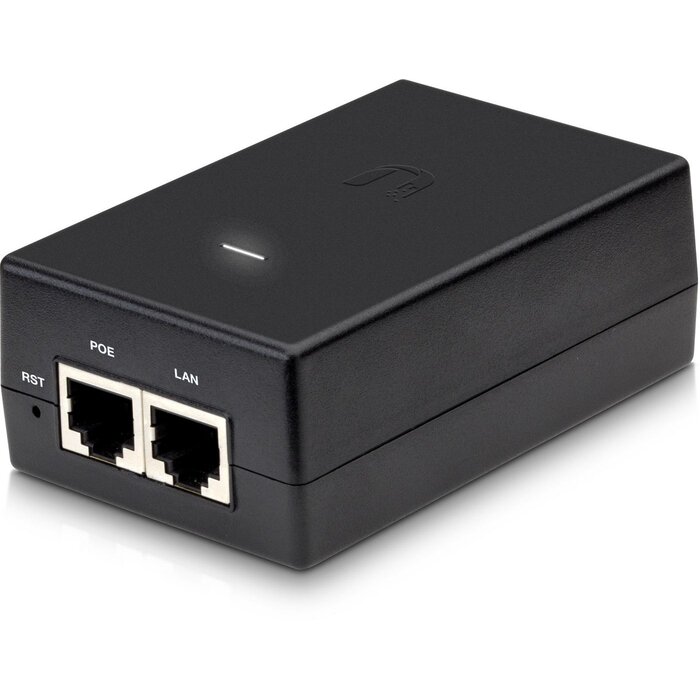

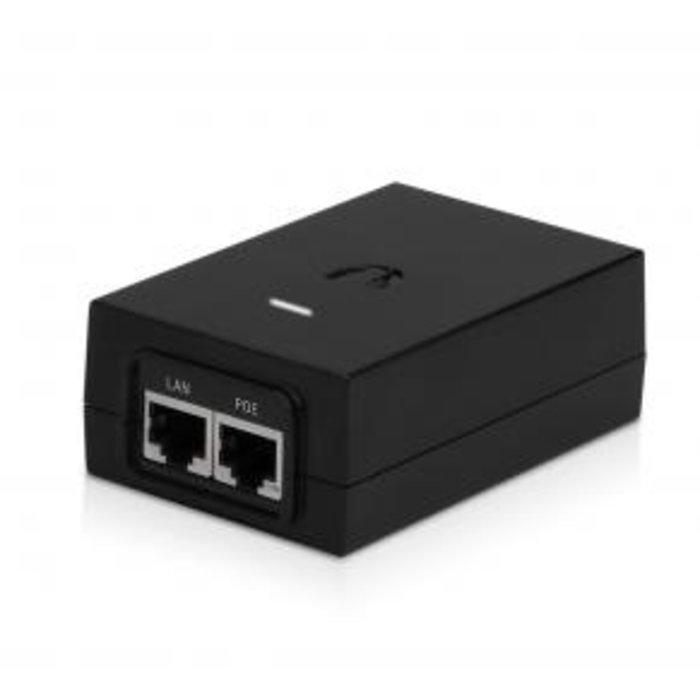

Ubiquiti Power over Ethernet injector 24V/1A - Gigabit (POE-24-24W-G)

Ubiquiti Power over Ethernet injector 24V/1A - Gigabit

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

Specifications Gigabit Power over Ethernet injector 24 24W

Dimensions: 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight: 158.5 g (5.59 oz)
Output Voltage: 24VDC @ 1.0A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Reset Button: Yes
Rated Voltage: 100-240VAC @ 50/60Hz
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -30 to 70 C (-22 to 158 F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A Power
Peak Pulse Current: 36A Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
