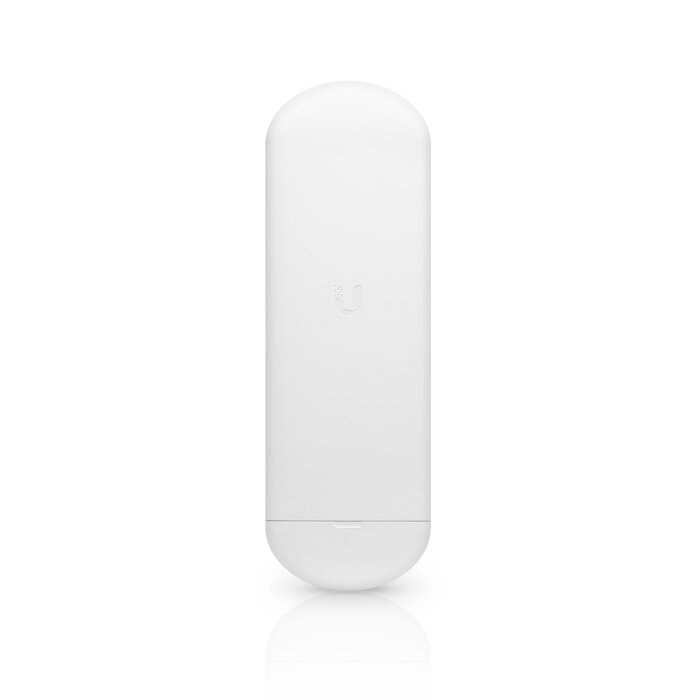

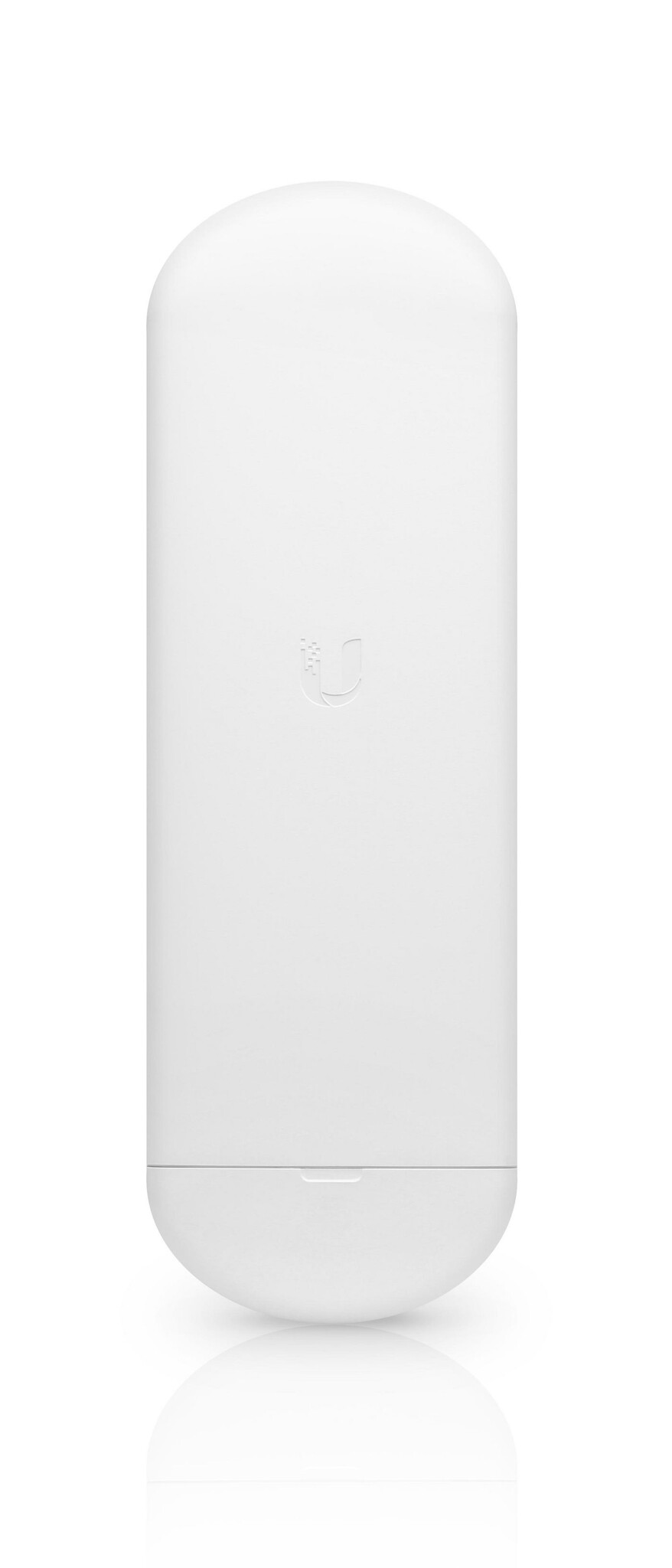

Ubiquiti NanoStation 5AC - NS-5AC (NS-5AC)

Ubiquiti NanoStation 5AC - NS-5AC

Merk: Ubiquiti

Ubiquiti Networks set the bar for the world's frst low-cost and effcient broadband Customer Premises Equipment (CPE) with the NanoStation M. The NanoStation ACand NanoStation AC loco feature airMAX technology and a dedicated Wi-Fi radio for management.

• Versatile Mounting
Both models are suitable for indoor and outdoor installations

• Improved Surge Protection
The NanoStation AC and NanoStation AC loco utilize the latest ESD Protection to help protect against power surges.

• Efficient Footprint
The radio and antenna are combined into a single body that takes up minimal space.

• Quick Installation
No fasteners are required for polemounting, and a single wall fastener (not included) is required for wall-mounting (NS-5AC only).

Specifications NanoStacion AC

Dimensions:
- Without Mount: 257 x 84 x 41 mm (10.12 x 3.31 x 1.61")
- With Mount: 257 x 84 x 30 mm (10.12 x 3.31 x 1.18")
Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption: 8.5W
Power Method: 802.3af Alternative A / 24V Passive PoE
Gain: 16 dBi

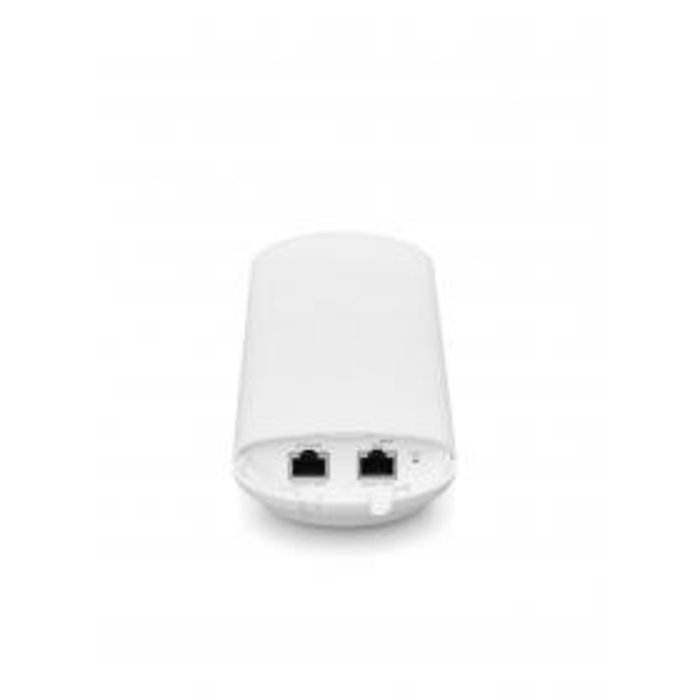

Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
Channel Bandwidths: 10/20/30/40/50/60/80 MHz
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 45 degrees(H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
Polarization: Dual Linear
Enclosure: UV Resistant Polycarbonate
LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -40 to 70 C (-40 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
ESD/EMP Protection: +/-24kV Contact/Air
Shock & Vibration: ETSI300-019-1.4
Certifications: CE, FCC, IC

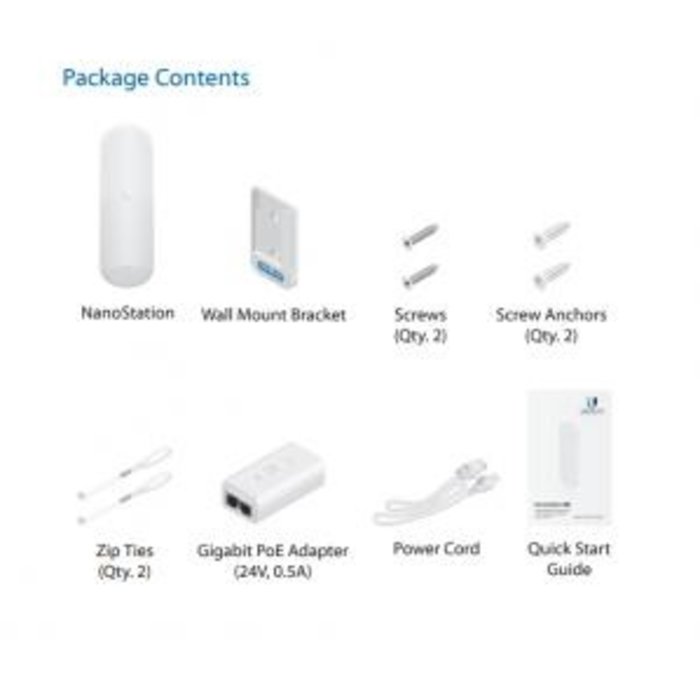

Package Contents

NanoStation, Wall Mount Bracket, Screws (2), Screw Anchors (2), Zip Ties (2), Gigabit PoE Adapter (24V, 05A), Power Cord, Quick Start Guide.

* Indien dit product boven de toegestane limieten gebruikt wordt, is dit niet langer vergunningsvrij en zelfs illegaal (max zendvermogen: 100 mW op 2,4GHz en 200 mW op 5GHz). Wij raden u aan de standaard configuratie v.w.b. de landeninstelling en/of vermogensinstelling van de apparatuur niet te wijzigen. Het gebruik van meer dan het wettelijke toegestane vermogen kan leiden tot verminderde bruikbaarheid van WIFI in uw onmiddellijke omgeving.
