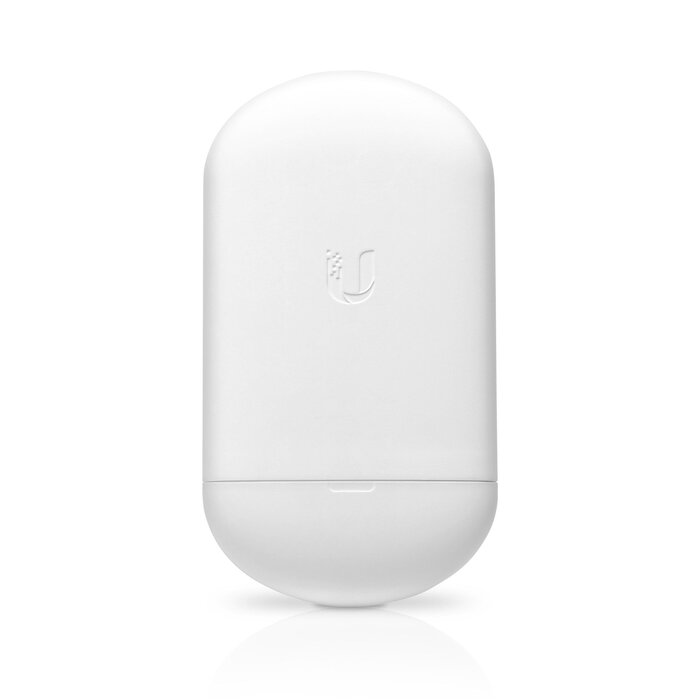

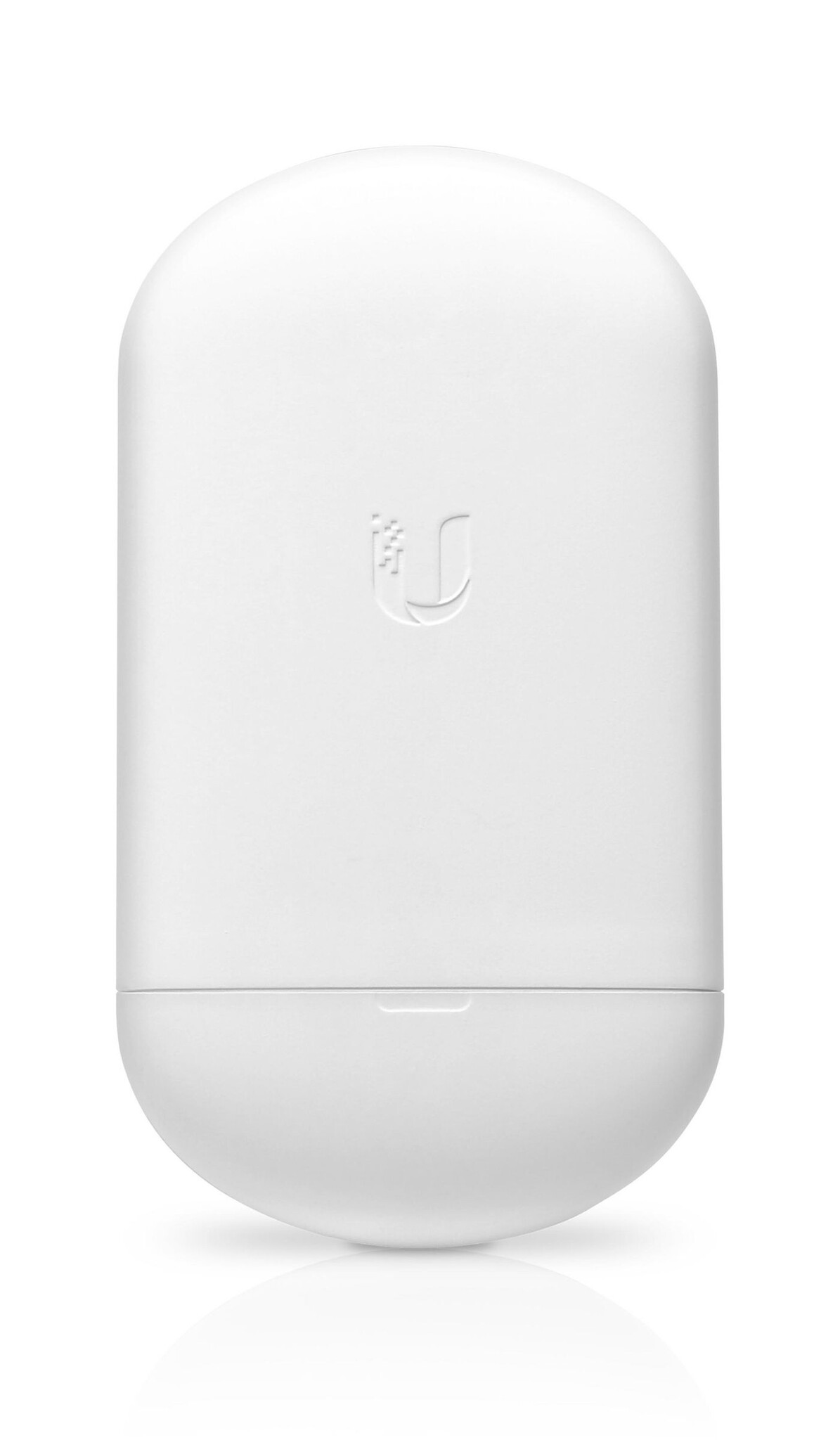

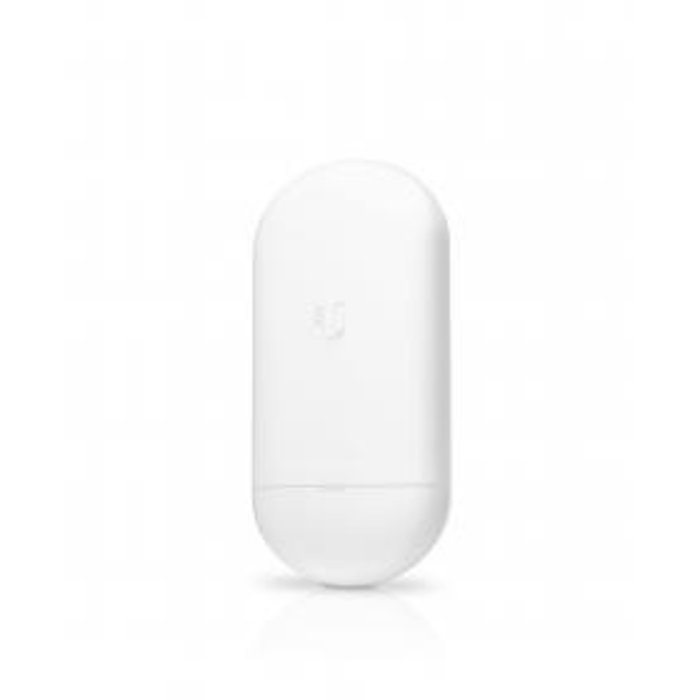

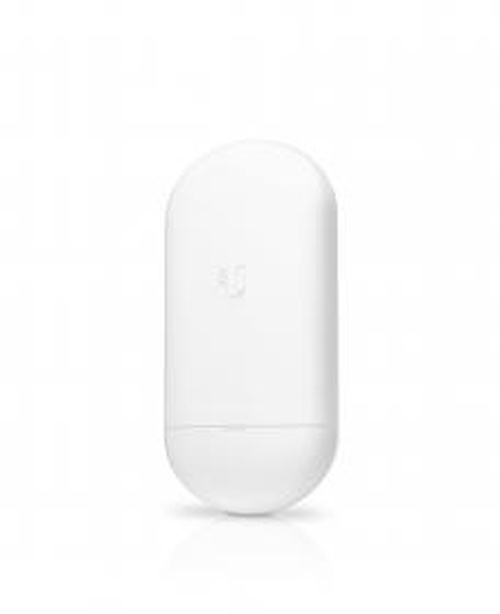

Ubiquiti NanoStation 5AC Loco - NS-5ACL (No PoE Adapter) (LOCO5AC)

ubiquiti NanoStation 5AC Loco - NS-5ACL (No PoE Adapter)

Merk: Ubiquiti

Ubiquiti Networks set the bar for the world's frst low-cost and effcient broadband Customer Premises Equipment (CPE) with the NanoStation M. The NanoStation ACand NanoStation AC loco feature airMAX technology and a dedicated Wi-Fi radio for management.

• Versatile Mounting
Both models are suitable for indoor and outdoor installations

• Improved Surge Protection
The NanoStation AC and NanoStation AC loco utilize the latest ESD Protection to help protect against power surges.

• Efficient Footprint
The radio and antenna are combined into a single body that takes up minimal space.

• Quick Installation
No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting (NS-5AC only).

Specifications NS-5ACL

Dimensions: 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")
Weight: 180 g (6.35 oz)
Power Supply: 24V, 0.3A Gigabit PoE Supply
Max. Power Consumption: 7W
Power Method: Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)
Gain: 13 dBi

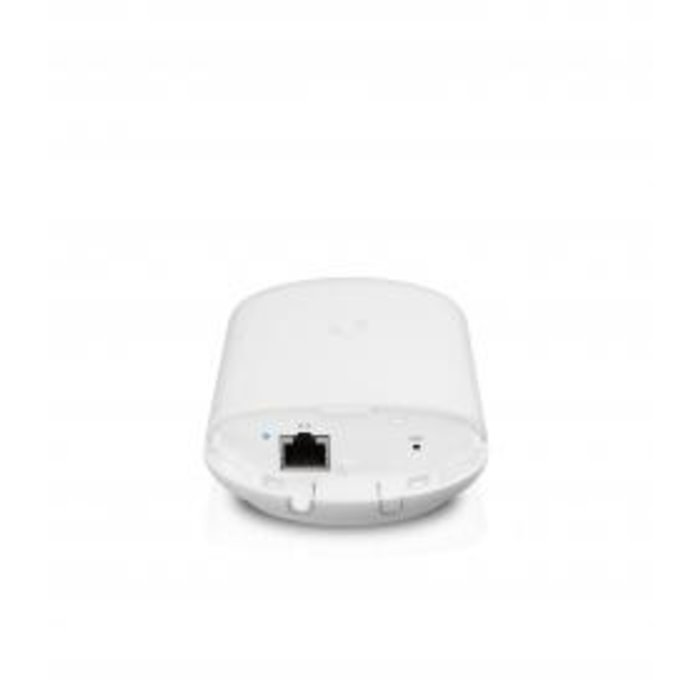

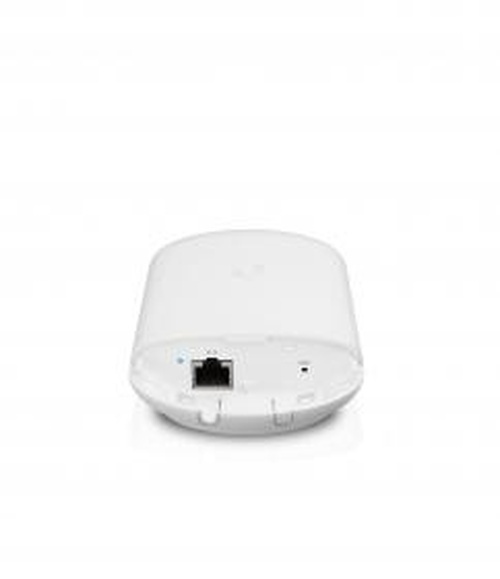

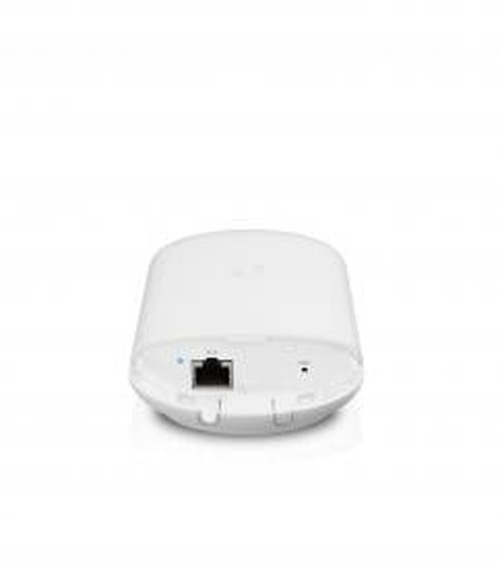

Networking Interface: 10/100/1000 Mbps Ethernet Port
Channel Bandwidths: 10/20/30/40/50/60/80 MHz
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.8:1
Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
LEDs: (1) Power
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -40 to 70 C (-40 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
ESD/EMP Protection: +/- 24kV Contact/Air
Shock & Vibration: ETSI300-019-1.4
Certifications: CE, FCC, IC

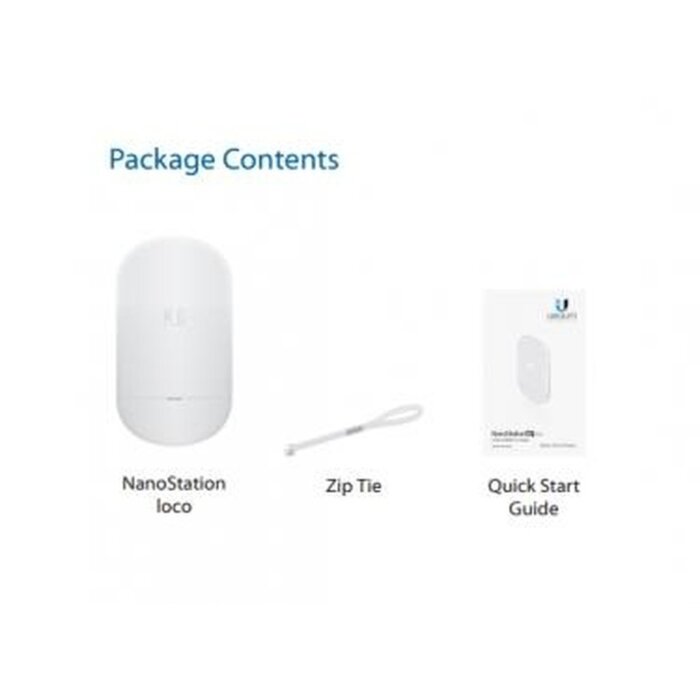

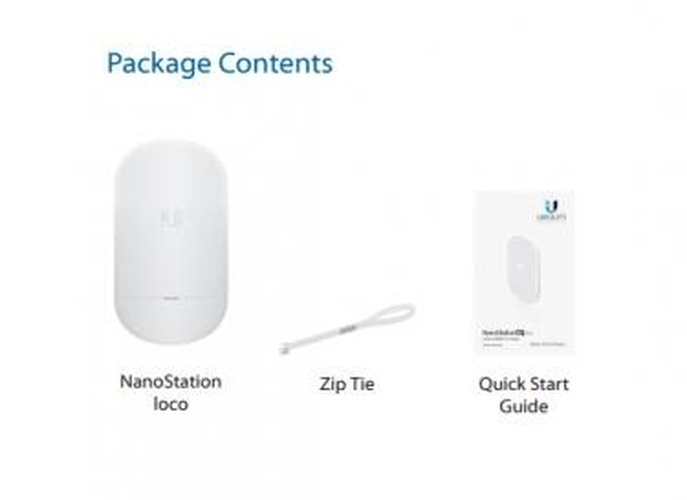

Contents

NanoStation Loco, Zip Tie, Quick Start Guide.

Let op: Er wordt geen PoE voeding bij dit product geleverd!

* Indien dit product boven de toegestane limieten gebruikt wordt, is dit niet langer vergunningsvrij en zelfs illegaal (max zendvermogen: 100 mW op 2,4GHz en 200 mW op 5GHz). Wij raden u aan de standaard configuratie v.w.b. de landeninstelling en/of vermogensinstelling van de apparatuur niet te wijzigen. Het gebruik van meer dan het wettelijke toegestane vermogen kan leiden tot verminderde bruikbaarheid van WIFI in uw onmiddellijke omgeving.
